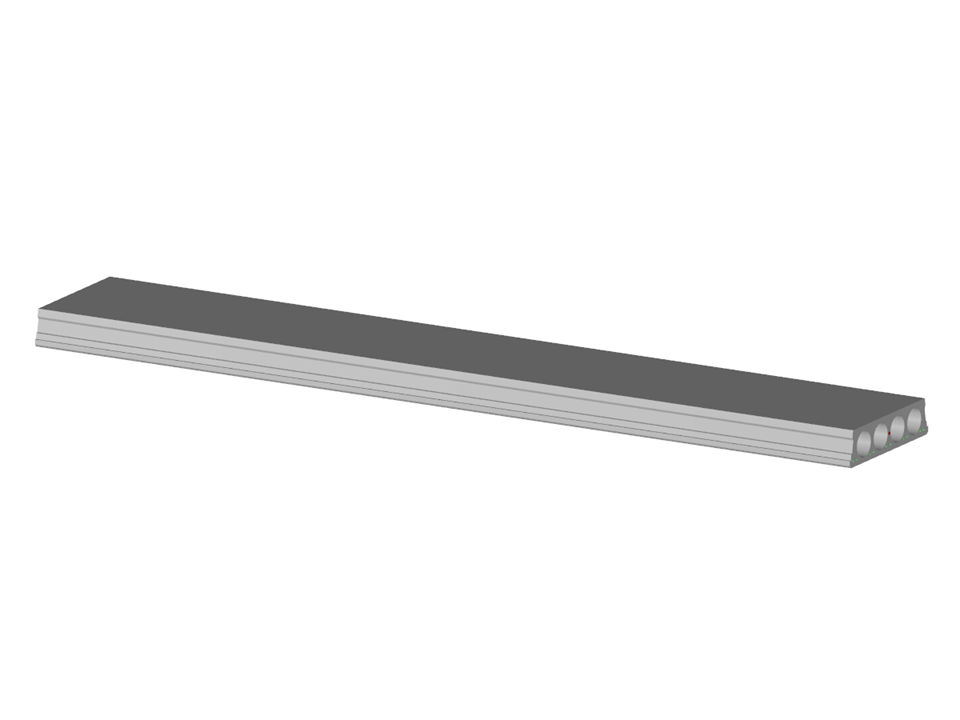

With the add-on modules RF‑TENDON and RF‑TENDON Design, you can design structural components with pretension, such as the prestressed hollow core slab element shown here.
Model Used in
Prestressed Hollow Core Slab
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 7 |
| Number of Result Combinations | 0 |
| Total Weight | 3.326 tons |
| Dimensions (Metric) | 7.120 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 23.36 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
