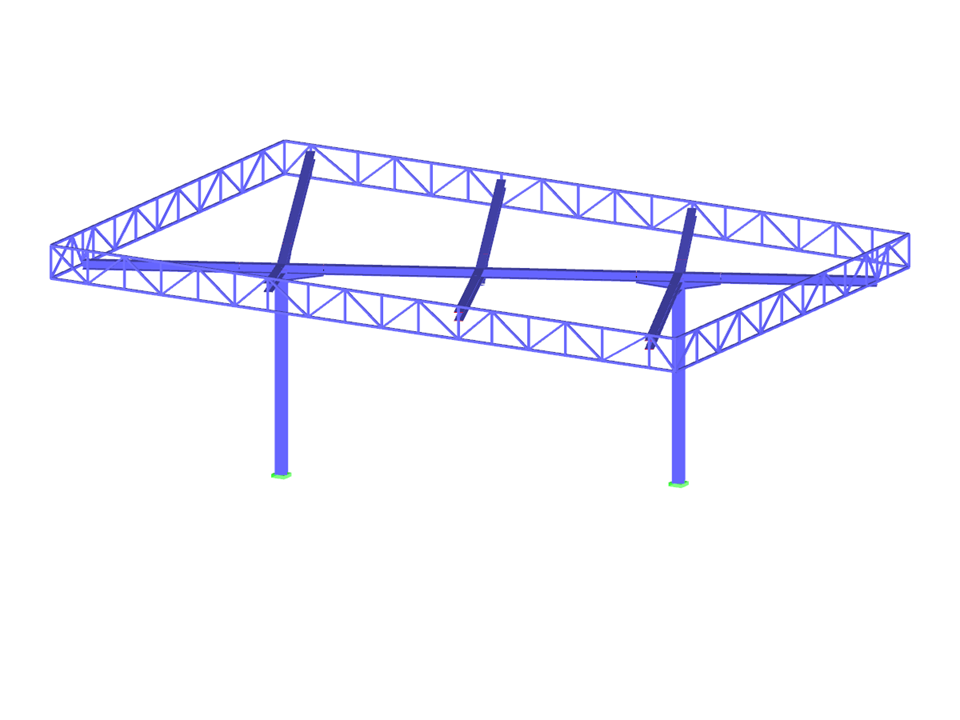

The new roof system for the GULFIN Cameroun oil company's gas station in Douala is a special structure with eccentric columns and non-symmetric cantilevered 21-foot-long beams.
CASTI GROUP
Cameroon
www.casti.cm
Steel Roof Structure of Gas Station
No Download Possible
Customer Project / View Only
Number of Nodes | 153 |
Number of Members | 276 |
Number of Load Cases | 2 |
Number of Load Combinations | 6 |
Number of Result Combinations | 4 |
Total Weight | 6.582 tons |
Dimensions (Metric) | 17.000 x 11.000 x 6.050 m |
Dimensions (Imperial) | 55.77 x 36.09 x 19.85 feet |
Program Version | 8.07.03 |
