The model focuses on innovative tensile membrane structures. It emphasizes the precise systematics and detailed analysis of material and load behavior. Engineers gain practical insights into the application of modern construction methods of membrane structures. The model allows for the targeted analysis of stress distributions and material properties. It presents a specialized approach to contemporary membrane engineering.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

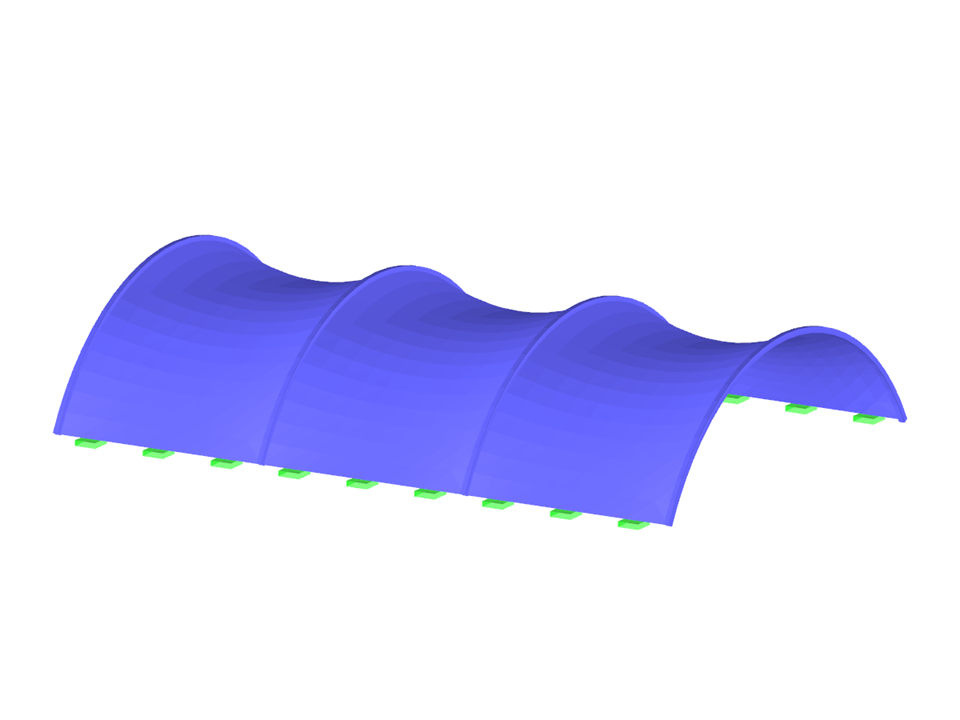

Tensile Membrane Structure

Number of Nodes 12
Number of Lines 10
Number of Members 4
Number of Surfaces 3
Number of Load Cases 1
Total Weight 3,427 t
Dimensions (Metric) 18.262 x 13.262 x 6.262 m
Dimensions (Imperial) 59.91 x 43.51 x 20.54 feet
Program Version 5.06.11

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
