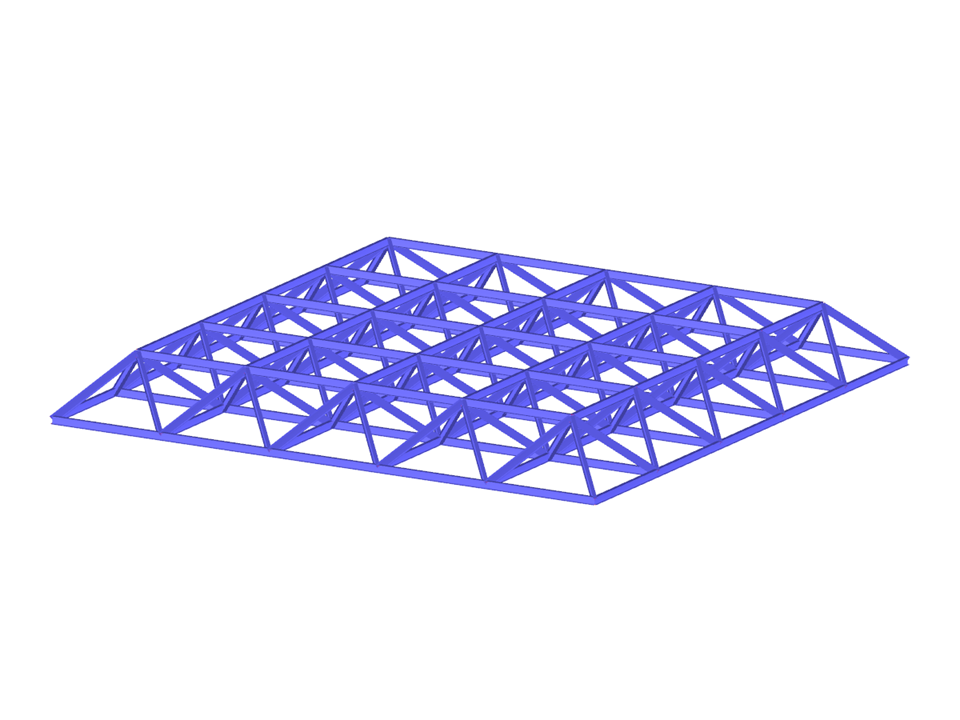

Download the model of a 3D truss here, and open it in RFEM 5.
This model is used in the video "Modeling with RFEM 5 | 010 3D Structures".
Model Used in
Modeling with RFEM 5 | 010 3D Structures | 3D Truss
| Number of Nodes | 61 |
| Number of Lines | 200 |
| Number of Members | 200 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 12.524 tons |
| Dimensions (Metric) | 15.000 x 1.500 x 15.000 m |
| Dimensions (Imperial) | 49.21 x 4.92 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
