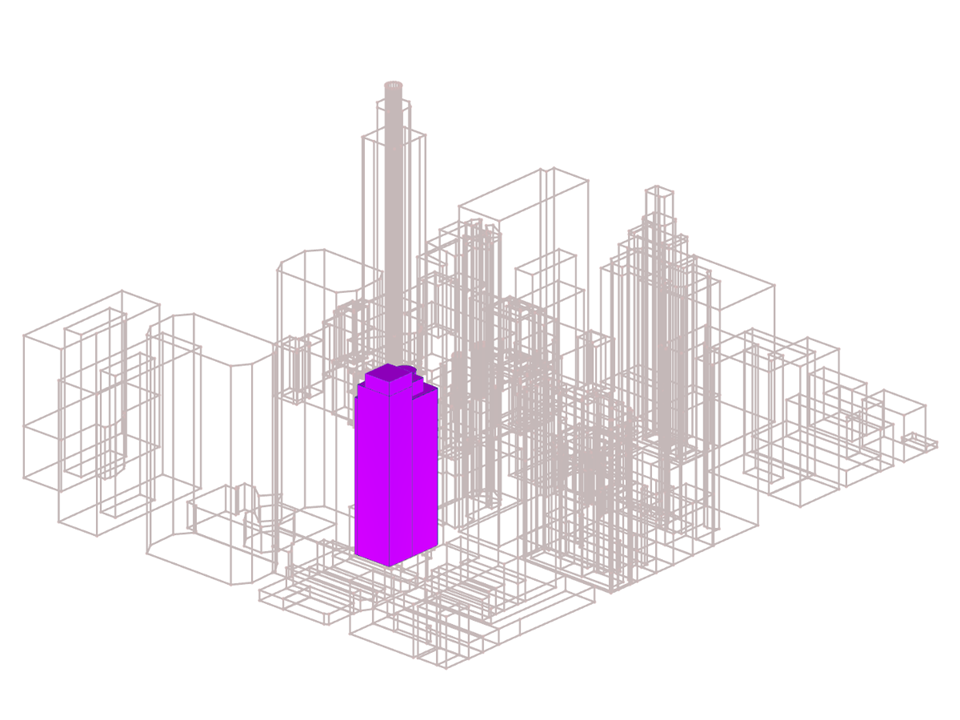

Office building of the company Dlubal Software in Philadelphia for wind simulation
Model Used in
Dlubal Office Building in Philadelphia
Number of Nodes | 60 |
Number of Lines | 94 |
Number of Members | 4 |
Number of Surfaces | 37 |
Number of Load Cases | 2 |
Total Weight | 0.890 tons |
Dimensions (Metric) | 47.510 x 35.923 x 119.201 m |
Dimensions (Imperial) | 155.87 x 117.86 x 391.08 feet |
Program Version | 5.23.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
