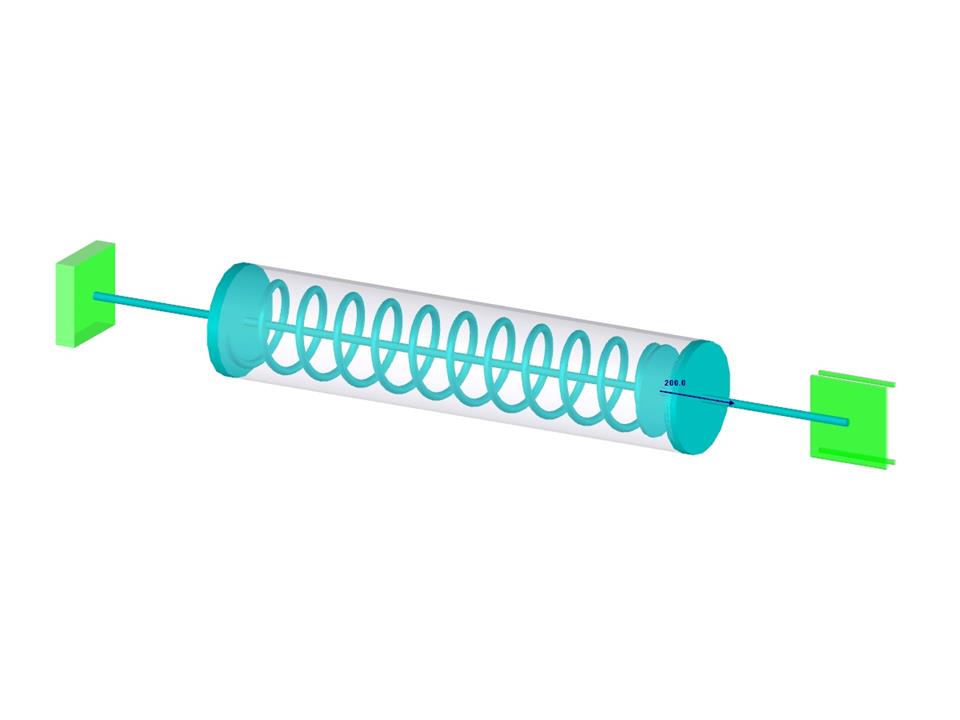

A single mass system with a dashpot is subjected to the constant loading force. Determine the deflection and velocity of the dashpot endpoint in a specified test time.
Model Used in
Verification Example 000120 | 2
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 0.276 x 0.076 x 0.076 m |
| Dimensions (Imperial) | 0.91 x 0.25 x 0.25 feet |
| Program Version | 5.14.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
