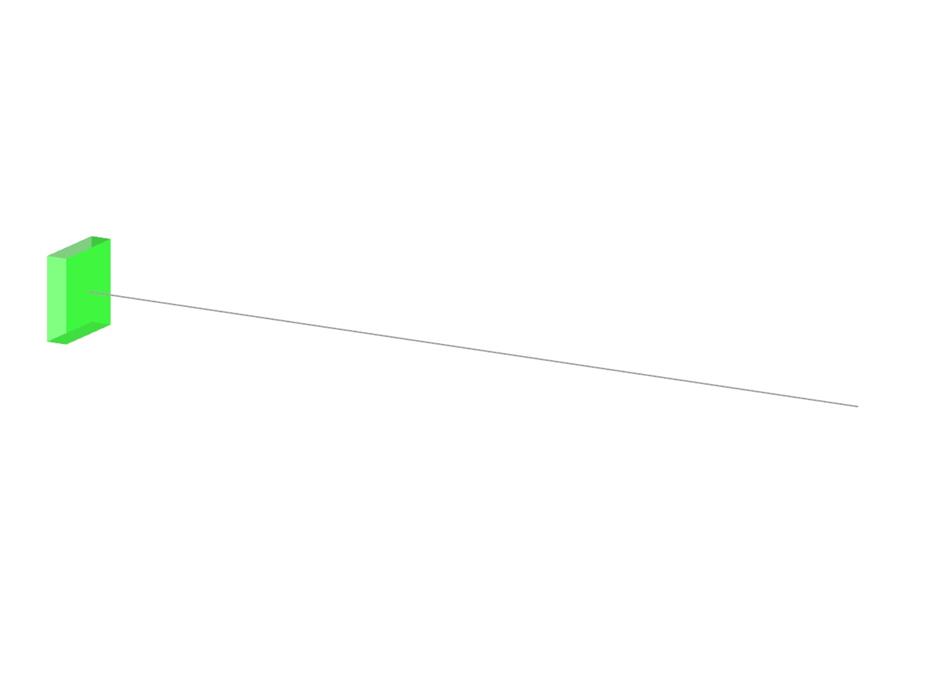

A double‑mass system consists of two shafts and two masses represented by the corresponding moments of inertia, concentrated in a given distance as nodal masses. The left shaft is fixed, and the right mass is free. Neglecting the self‑weight of the shafts, determine the torsional natural frequencies of the system.
Model Used in
Verification Example 000111 | 4
| Number of Nodes | 3 |
| Number of Members | 2 |
| Total Weight | 0.006 tons |
| Dimensions (Metric) | 1.250 x 0.500 x 0.500 m |
| Dimensions (Imperial) | 4.1 x 1.64 x 1.64 feet |
| Program Version | 8.10.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
