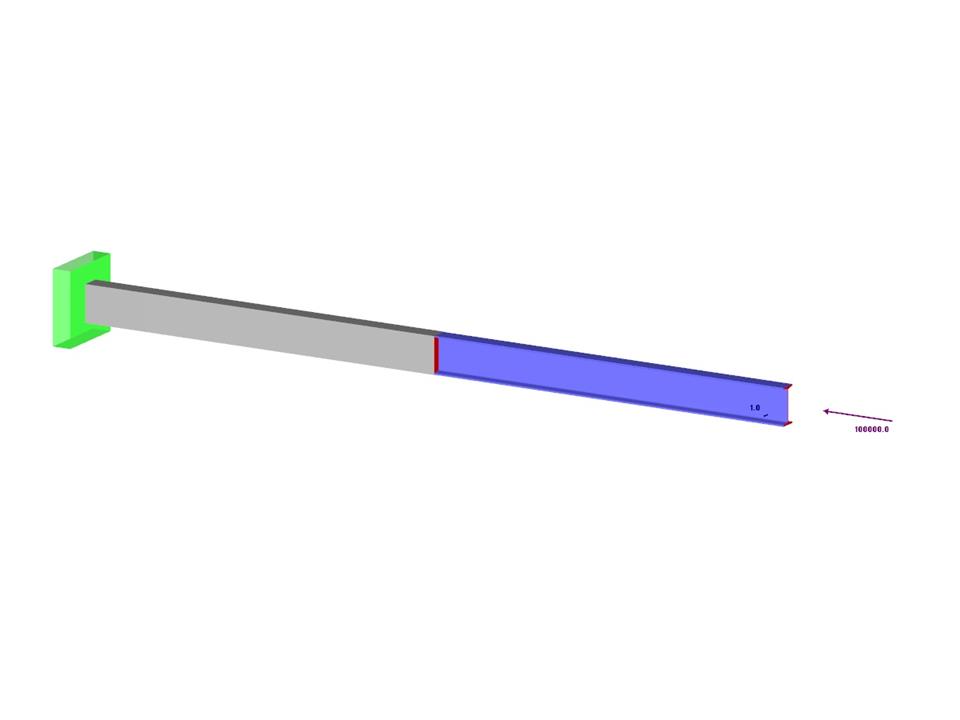

A column is composed of a concrete part - rectangle 100/200 and of a steel part - profile I 200. It is subjected to pressure force. Determine the critical load and corresponding load factor. The theoretical solution is based on the buckling of a simple beam. In this case, two regions have to be taken into account due to different moments of inertia and material properties.
Model Used in
Verification Example 000093 | 4
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Load Cases | 1 |
| Total Weight | 0.152 tons |
| Dimensions (Metric) | 4.004 x 0.007 x 0.007 m |
| Dimensions (Imperial) | 13.14 x 0.02 x 0.02 feet |
| Program Version | 5.15.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
