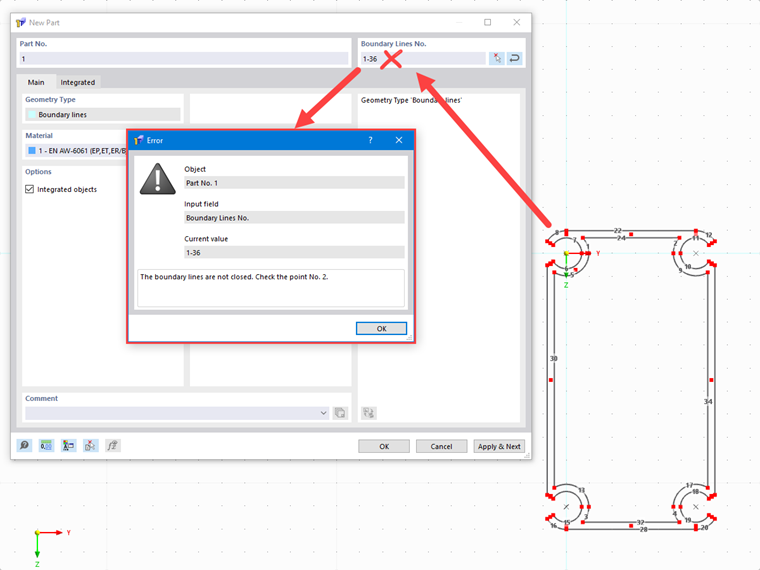

Selection of lines is incorrect, as all lines have been selected.

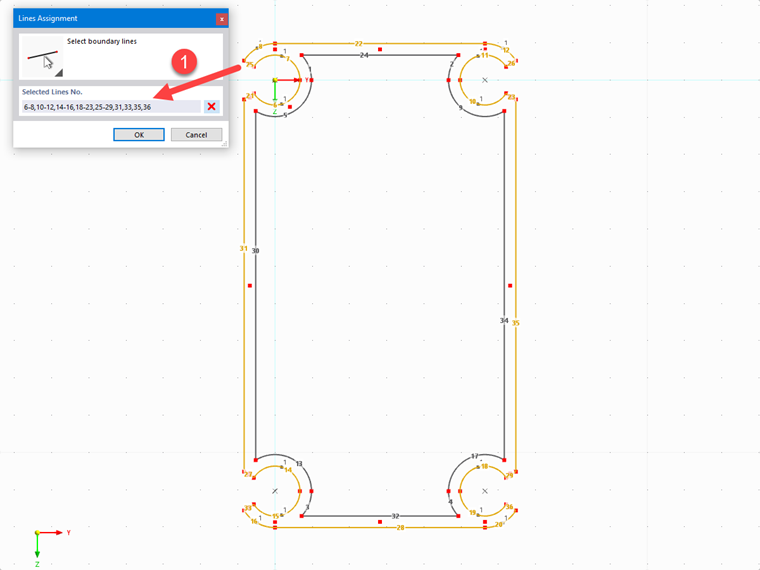

First, the part must be created by selecting the outer boundary lines only (1):

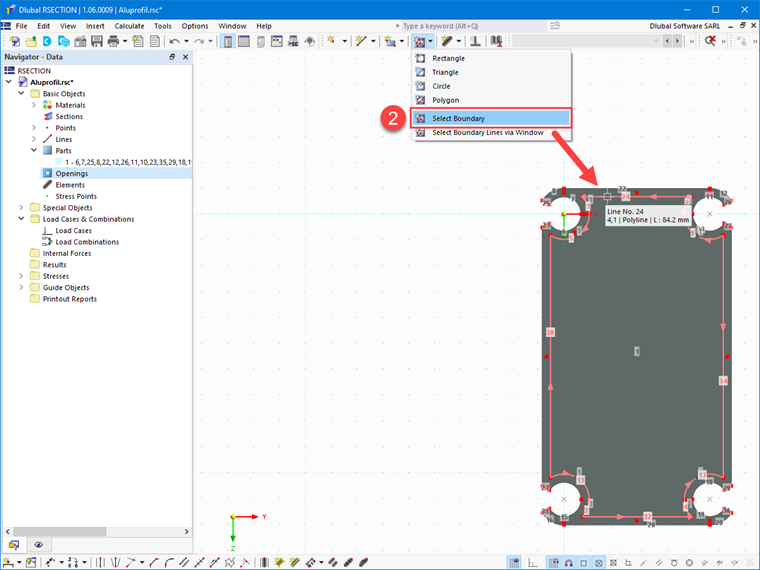

Then you have to select the'tool for creating'openings from boundary lines (2):
Each boundary line representing an opening can be selected one by one.
