Shortcuts

You can access the frequently used functions and commands in the program by using the integrated keyboard functions (shortcuts). For example, to print a graphic, the corresponding keyboard shortcut is [Ctrl]+[V]. Some important keyboard functions are listed in the Keyboard Functions chapter of the RFEM 5 manual.

• Complete List of Keyboard Functions

If you want to assign user-defined shortcuts in RFEM 6 or RSTAB 9, proceed as follows:

1. In the Options menu, select the Customize Menus and Toolbars function.
2. All commands are sorted by category in the "Customize" dialog box. Select the Category of the command in the left column.
3. Double-click the middle column (1) in the row of the command.
4. In the "Set Shortcut" dialog box, you can now enter a user-defined combination (2).
5. Click the Set button to assign the shortcut (3).

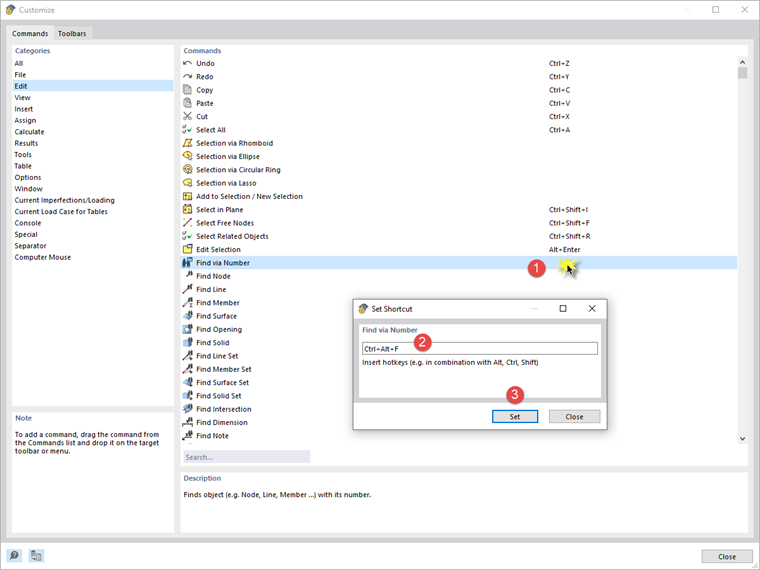

Assigning Shortcuts

Please note that some key combinations may already be used by the operating system for other functions. Make sure that the combination you select does not conflict with any existing shortcut.
