Error Message when Creating FE Mesh

When trying to create an FE mesh, I get an error message. I cannot find any mistakes. Something seems to be wrong with the surface axes.

Answer:

Perhaps the input parameter for the surface is missing. In the model file of the FAQ, the axis of the surface refers to a line that has obviously been deleted before. Thus, it is not clear how to create the axis system for the surface.

There are two simple solutions:

  1. Select a line to which the x- or y-axis should be parallel.

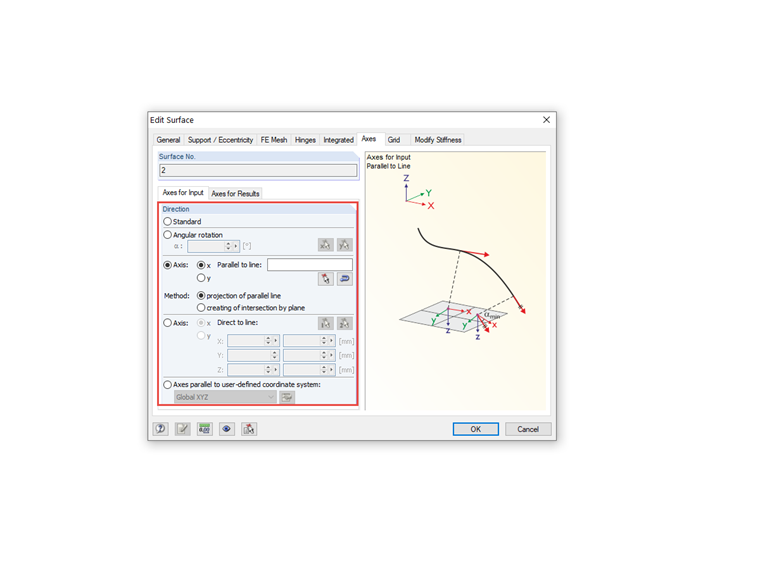

    Defining Axes
    Defining Axes
  2. Switch back to the default setting.
FAQ|004928
EN-US | Flag FAQ
[EN] FAQ 004928 | When trying to create an FE mesh, I get an error message. I cannot ...

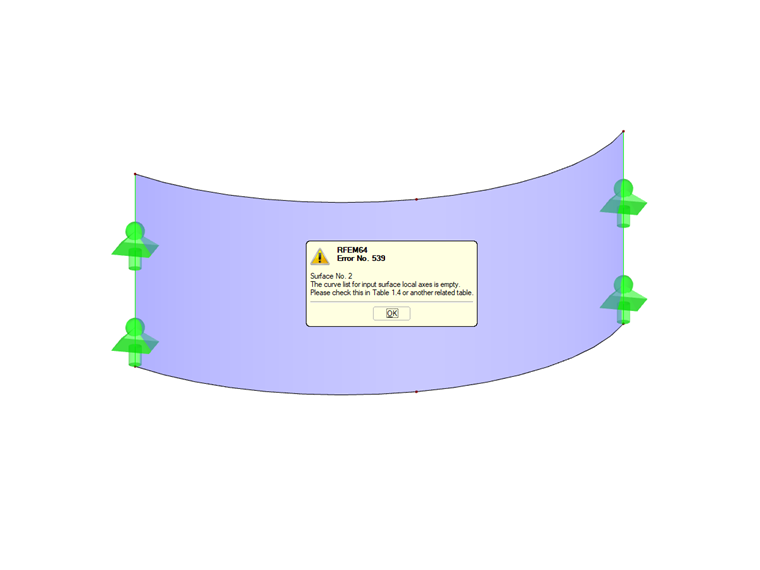

Error No. 539
Error No. 539
