Alignment of Nodal Supports on Specific Member Axis

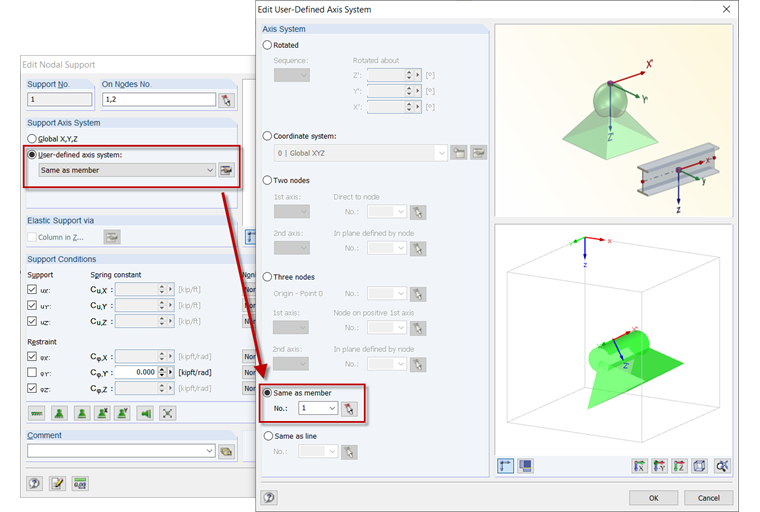

To adjust a nodal support to a specific member axis, proceed as follows:

• Open the "Edit Nodal Support" dialog box → activate the "User-defined axis system" option.
• Click the "Edit User-Defined Axis System" button.
• Activate the "Same as member" option.
• Select members using the corresponding button.
• Click OK to confirm.

FAQ

FAQ 004695 | How can I define the orientation of nodal supports in my structure to a specific member axis?

Nodal Support Axis System Same as Member
