Definition of Cross-Section Classes for Curved Section Parts

When determining the effective cross-section properties according to EN 1993‑1‑1, EN 1993‑1‑5, or EN 1999̩1‑1, SHAPE‑THIN displays a warning message saying that the effective widths are only determined for straight elements. What does this mean?

Answer:

The cross-section class is defined according to EN 1993‑1‑1 and EN 1999‑1‑1 by the maximum width/width ratio c/t or b/t of the cross-section parts subjected to compression. EN 1993‑1‑1 or EN 1999‑1‑1 only cover various straight c/t or b/t parts. Therefore, the classification and determination of effective widths is not possible for the curved c/t or b/t sections.

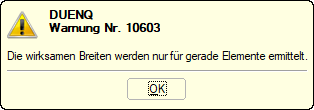

Warning
