Question
For design, I need the load combinations from 1.00*G + 1.50*Q. How can I generate them automatically?
Answer:

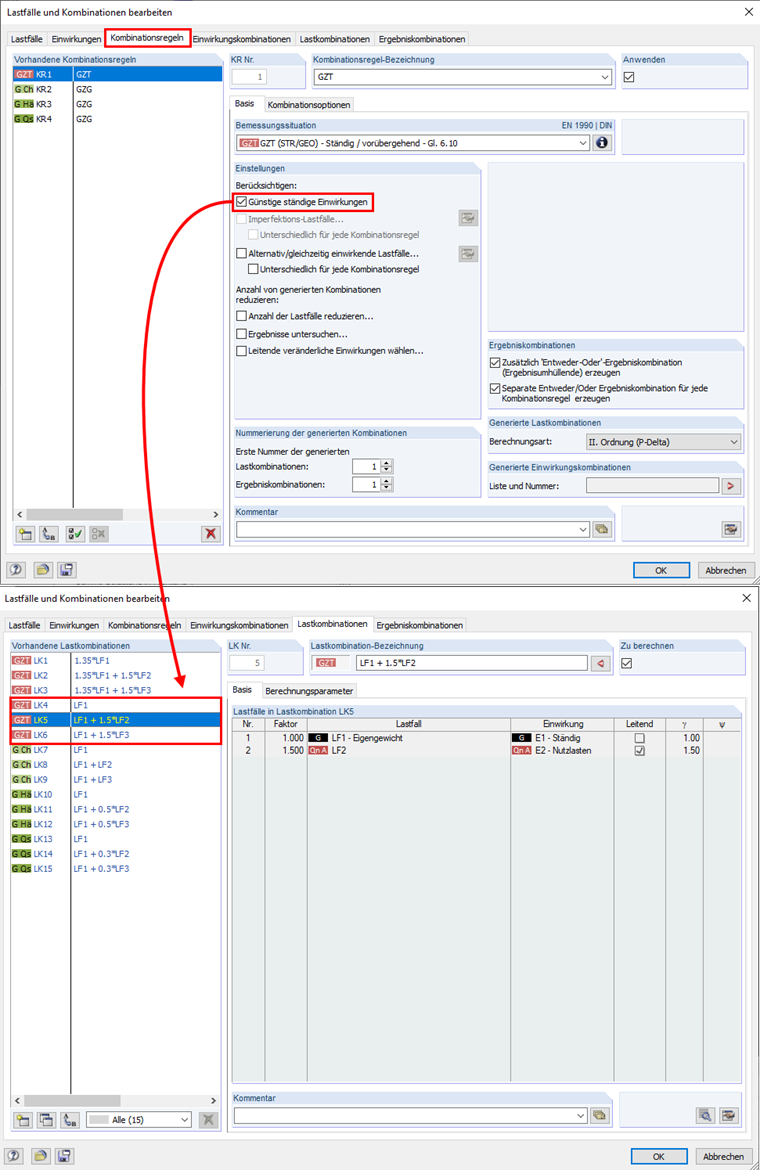

You will find this option in the settings for combination expressions.Here, you can select the "Favorable Permanent Action" option.
On one hand, this generates the combinations with 1.35*G + 1.50*Q. On the other hand, you get the same combinations with 1.00*G + 1.50*Q.
They can then be used in the add-on modules for further design checks.
Do you have any questions?
