Up to 01:30
Introduction
|
|
Up to 02:30

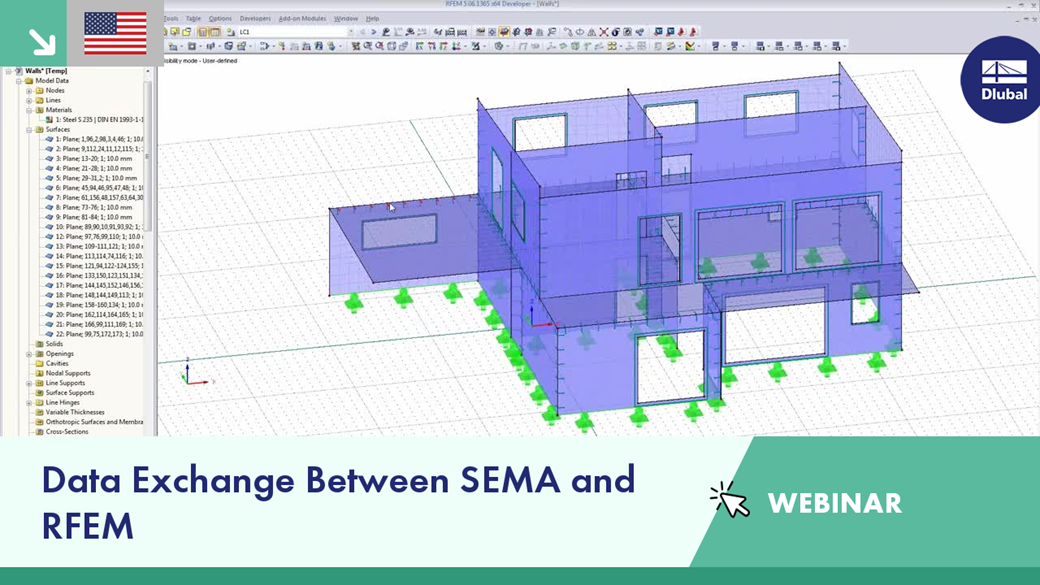

Exchange formats, Design with eccentricities, keeping material and profile properties
|
|
Up to 06:20
SEMA Timber Software, Export of the model
|
|
Up to 36:15
Import into RFEM and Design with RF-LAMINATE and RF-TIMBER AWC
|
|
Up to 38:00
Further information on previous and upcoming webinars
|
Product Feature
In RFEM, the oriented strand board (OSB) material is available for the USA and Canada. The material parameters are taken from the "Panel Design Specification manual".
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. Simply specify the surface geometry and the timber panel elements are automatically generated using an internal member-surface construct, including the element connection stiffness. The Beam Panel thickness type is defined using the Multilayer Surfaces add-on.
A "beam panel" provides you with the following advantages:
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
.png?mw=512&hash=4e74affa9ad0c7b703151c5085ac9b8e59171c23)
Among others, the following cross-laminated timber manufacturers are available in the layer structure library:
By importing a structure from the layer structure library, all relevant parameters are adopted automatically. The library is continually updated.
