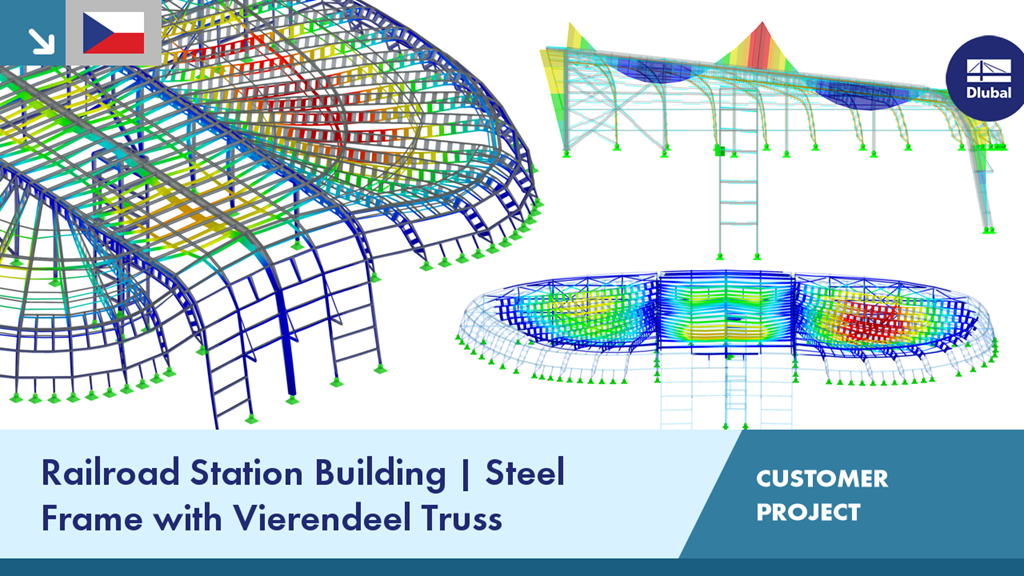

In this video you can see customer project from Czech Republic. The station building is an organic shaped steel structure consisting of three connected parts. The left and right building sections are formed by curved Vierendeel truss beams extruding from the main Vierendeel truss down to the reinforced concrete foundation. These main trusses are supported by a row of columns with additional vertical bracing.
CP 001190 | Railroad Station Building, Karlovy Vary, Czech Republic
