Question:

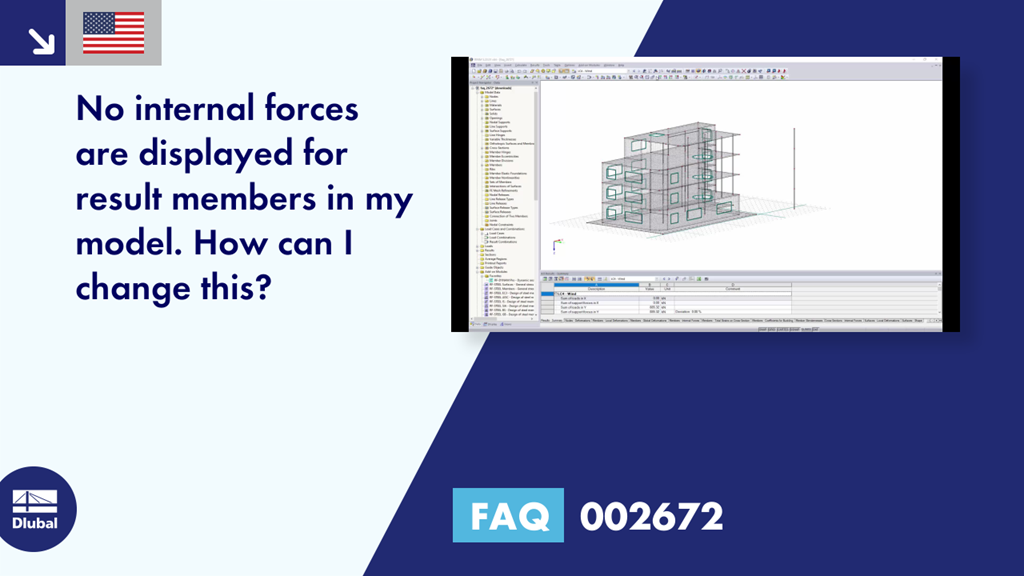

There are no internal forces displayed for result members in my model. How can I change that?
Answer:
Make sure that the "Results on Result Members" option is activated for result members in the Display navigator. If it is deactivated, no internal forces are displayed.
