Question:

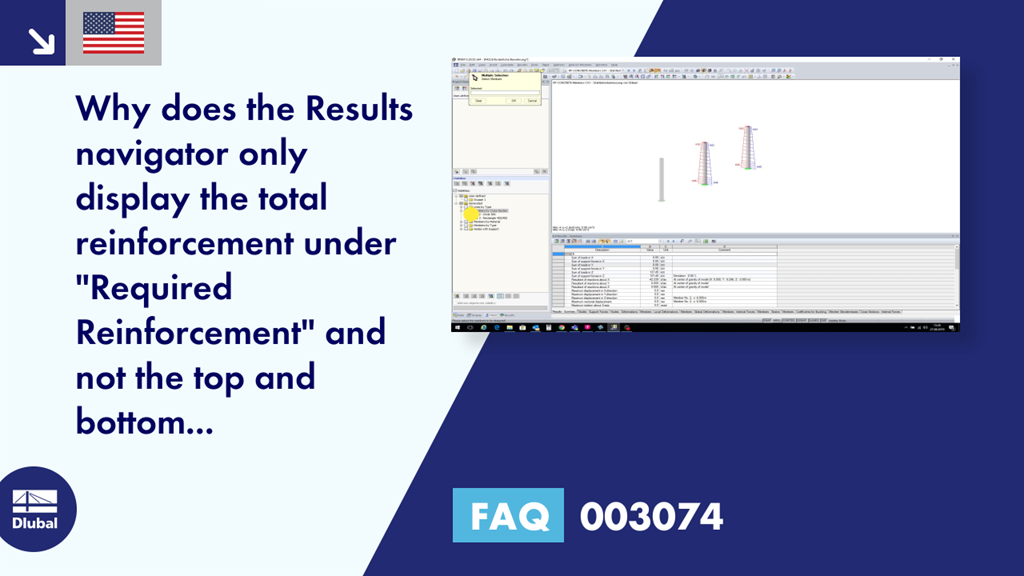

Why does the Results navigator only display the total reinforcement under "Required Reinforcement" and not the top and bottom reinforcements separately?
Answer:
When designing one or more members with a circular cross-section, A-s,top and A-s,bottom are no longer displayed: For such cross-sections, "top" and "bottom" cannot be defined; the "circular" reinforcement is created: see Image 01.
Solution: Create a separate design case for the circular cross-sections (select "File → New Case" in the module menu) and design the corresponding members separately. In the other design case, delete the members with circular cross-sections. After the calculation, A-s,top and A-s,bottom will be displayed in the Results navigator; see Image 02.
