Download the model of an opening window frame here, and open it with the structural FEA software RFEM 6.
Ce modèle est utilisé dans la matinale «Création de sections bois spéciales avec RSECTION» du 09 septembre 2024.

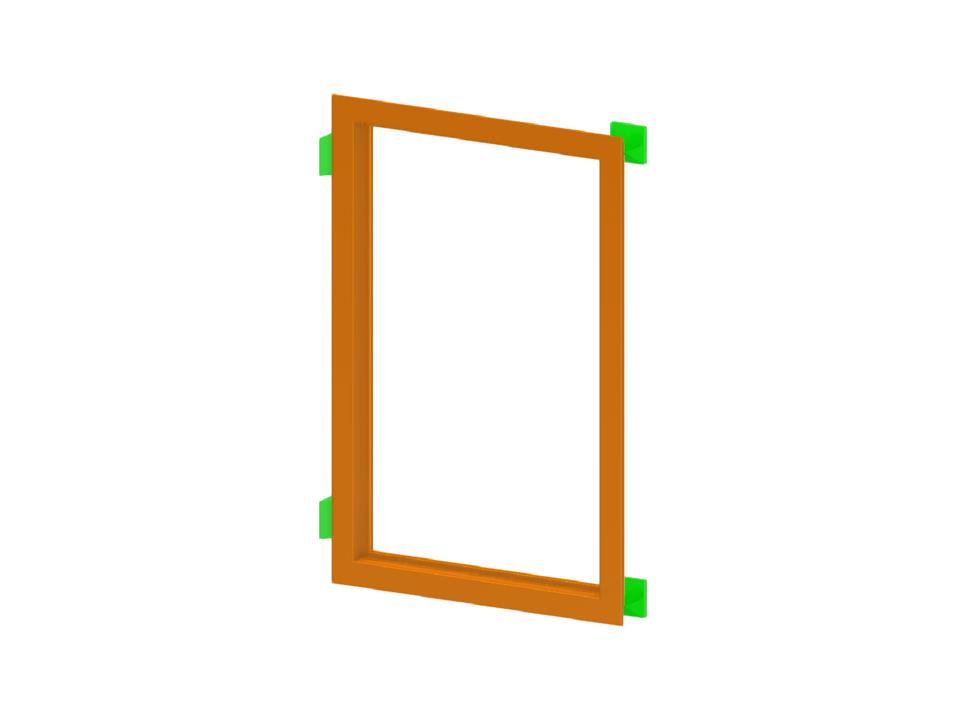

Opening frame of a window
| Number of Nodes | 6 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 6 |
| Number of Result Combinations | 0 |
| Total Weight | 0.004 tons |
| Dimensions (Metric) | 0,700 x 1,100 x 0,000 m |
| Dimensions (Imperial) | 2.3 x 3.61 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
