Download the steel silo structure with applied wind loads here and open it with the FEA software RFEM 6 and wind analysis program RWIND 2.
This model is used in the free webinar "RWIND 2 - Calculating Wind Loads with CFD Simulation" on February 7, 2024 (English).
Model Used in

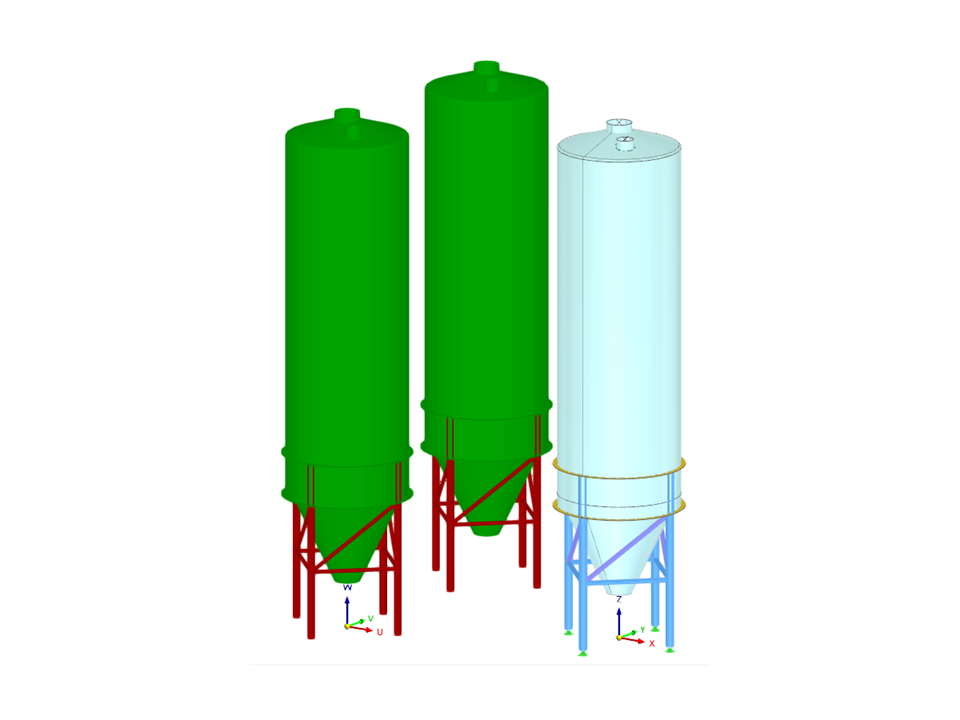

Steel Silo with Wind Loads | ASCE 7
| Number of Nodes | 44 |
| Number of Lines | 63 |
| Number of Members | 20 |
| Number of Surfaces | 19 |
| Number of Solids | 0 |
| Number of Load Cases | 12 |
| Number of Load Combinations | 98 |
| Number of Result Combinations | 0 |
| Total Weight | 11.226 tons |
| Dimensions (Metric) | 13.466 x 18.898 x 13.064 m |
| Dimensions (Imperial) | 44.18 x 62 x 42.86 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
