This model of a steel hall was created in the online training "RFEM 6 Tutorial for Beginners" and reflects the current state of the video “Creating New Model – Base Data”. It is designed for use in the finite element analysis software RFEM and offers a comprehensive insight into practical applications of steel structures.

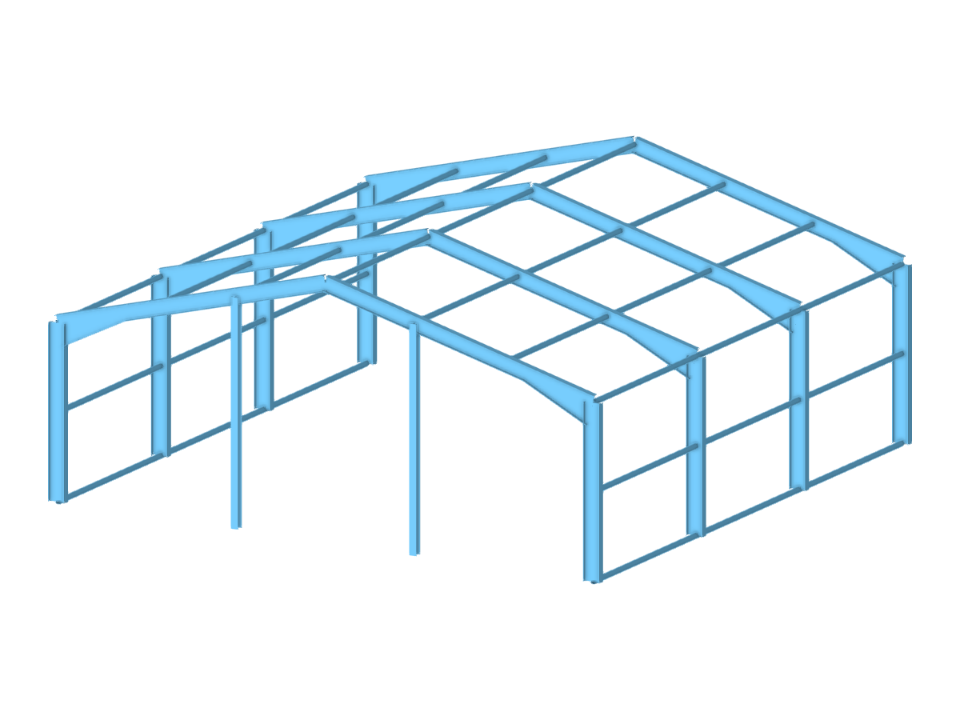

Steel Hall from Online Training | 07
| Number of Nodes | 55 |
| Number of Lines | 51 |
| Number of Members | 51 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 12,079 t |
| Dimensions (Metric) | 15,000 x 6,500 x 15,000 m |
| Dimensions (Imperial) | 49.21 x 21.33 x 49.21 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
