A model created by the technical team of Dlubal Latam. The model can also be available as a parametrized block at the Dlubal Latam site.
The file to download contains a parametrized model saved as a block (the *.rfs file type).

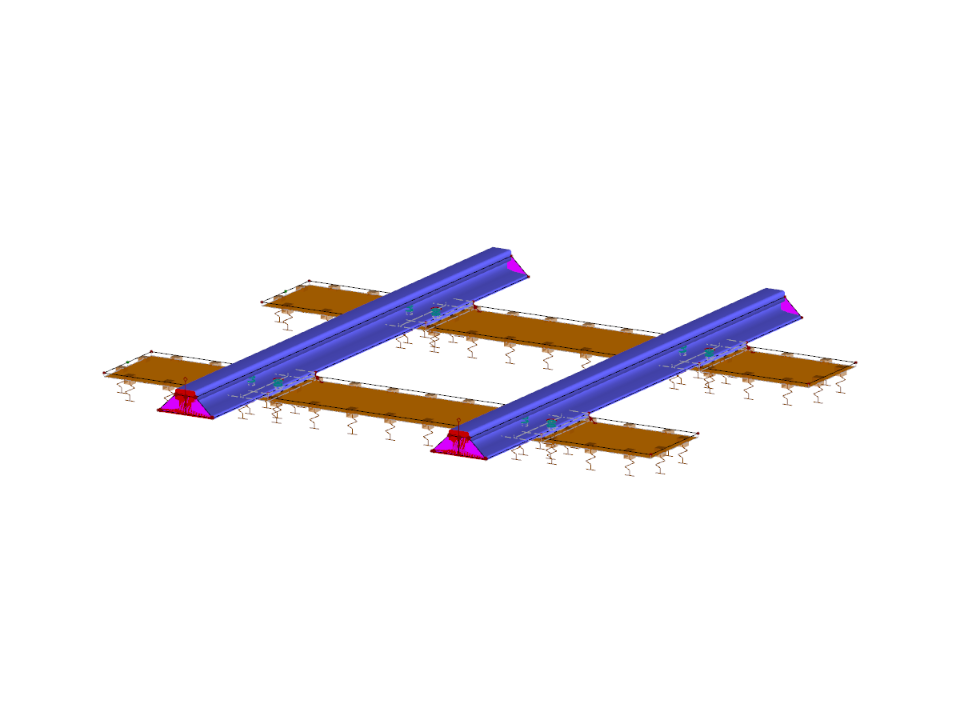

Railroad Section
Block parameters editable dynamically | |
Number of Nodes | 150 |
Number of Lines | 182 |
Number of Members | 10 |
Number of Surfaces | 96 |
Number of Solids | 8 |
Total Weight | 0.529 tons |
Dimensions (Metric) | 2.000 x 2.000 x 0.083 m |
Dimensions (Imperial) | 6.56 x 6.56 x 0.27 feet |
Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
