A model created by the technical team of Dlubal Latam. The model can also be available as a parametrized block at the Dlubal Latam site.
The file to download contains a parametrized model saved as a block (the *.rfs file type). For more information about the parametrized models and blocks, see Short Video Tutorial - SVT 010 | Creating and Importing Blocks - see the link below.

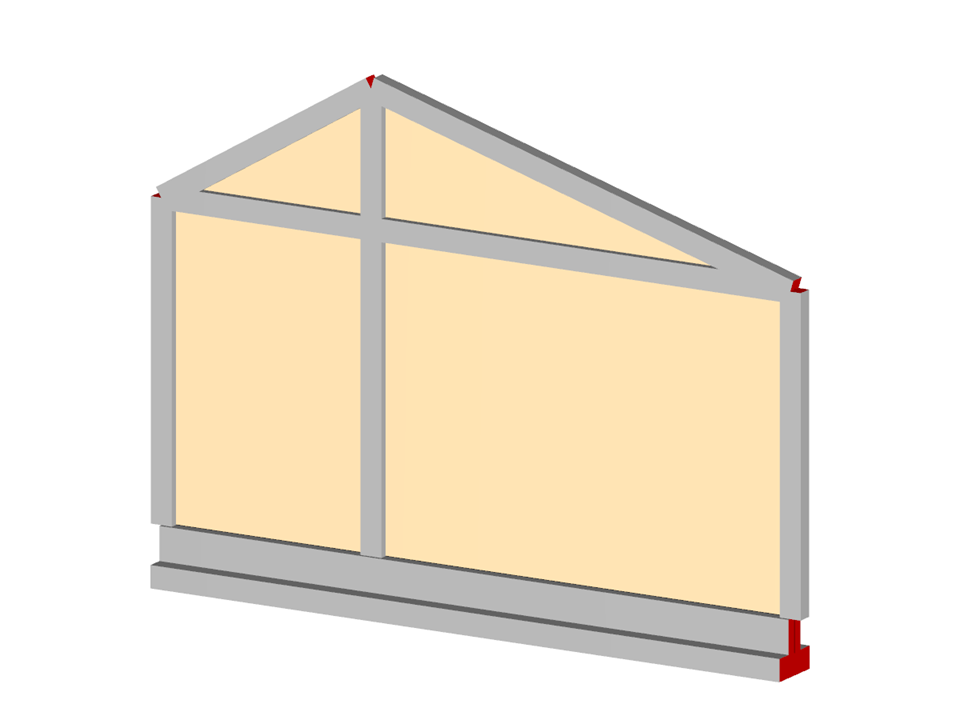

Sloped Masonry Wall
Block parameters editable dynamically | |
Number of Nodes | 7 |
Number of Lines | 9 |
Number of Members | 9 |
Number of Surfaces | 3 |
Total Weight | 6.325 tons |
Dimensions (Metric) | 6.000 x 0.000 x 4.306 m |
Dimensions (Imperial) | 19.69 x 0 x 14.13 feet |
Program Version | 5.26.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
