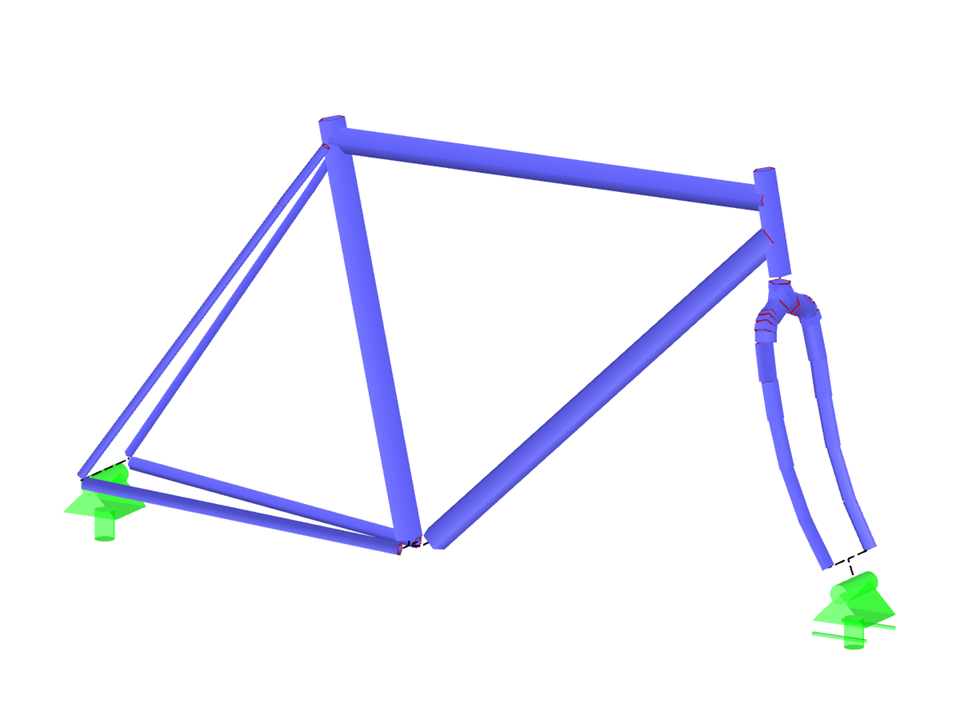

The model vividly shows how an overall structure can be built from individual substructures, using a bicycle frame as an example. The modular structure uses blocks and block managers to enable precise and systematic component assembly. Technical details and perspectives illustrate the structural integration and execution of the connecting elements. At the same time, the presentation emphasizes the flexibility and adaptability of the design.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Modular Structure of Bicycle Frame

Number of Nodes 66
Number of Lines 70
Number of Members 70
Number of Load Cases 2
Total Weight 0.004 t
Dimensions (Metric) 0.975 x 0.103 x 0.467 m
Dimensions (Imperial) 3.2 x 0.34 x 1.53 feet
Program Version 5.23.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
