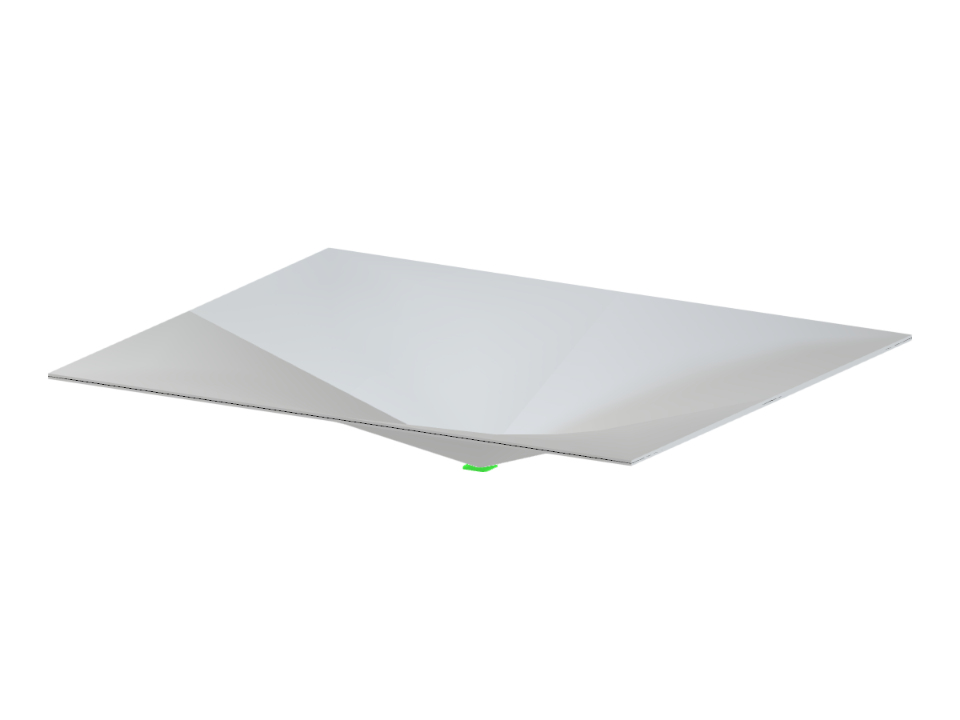

Anticlastic shells | Four 'hypar' surfaces over rectangular plan | All boundaries on one level
SHH021 | Anticlastic Shells
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.315 tons |
| Dimensions (Metric) | 12,000 x 2,000 x 10,000 m |
| Dimensions (Imperial) | 39.37 x 6.56 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
