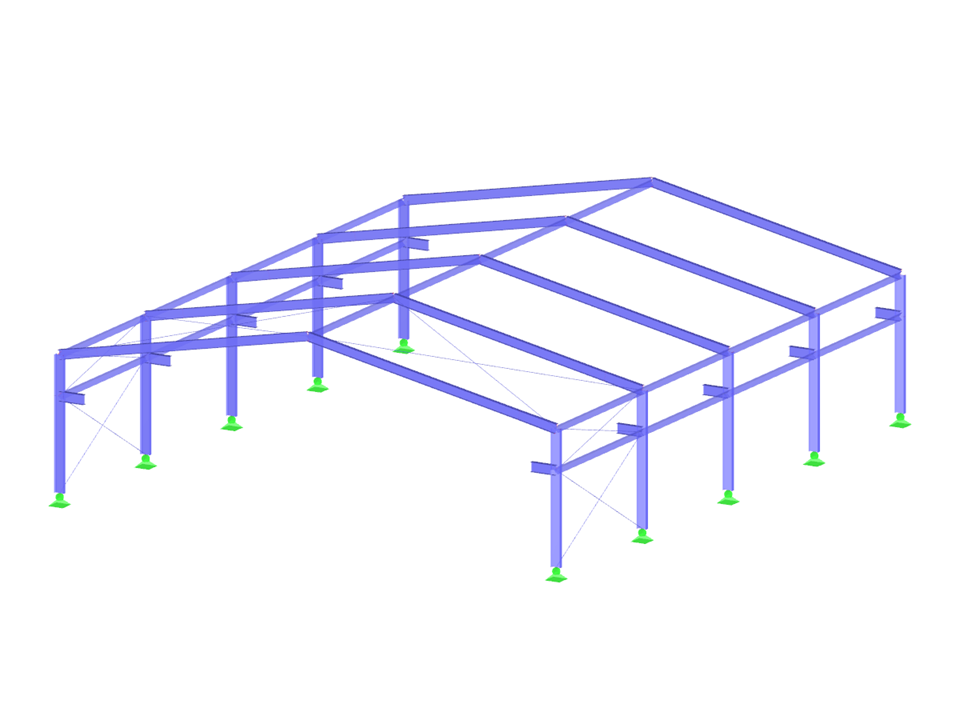

In this model, a steel hall is shown as an example in accordance with DIN 1055 (2005). The structure focuses on typical aspects of steel structures and the implementation of the hall and steel components. The model provides a simplified insight into structural relations and provides reference points for comparable projects. A precise representation of the design details supports the practical application.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Hall DIN 1055 Example

Number of Nodes 55
Number of Members 82
Number of Load Cases 13
Number of Load Combinations 68
Number of Result Combinations 1
Total Weight 14,564 t
Dimensions (Metric) 20.360 x 24.360 x 7.345 m
Dimensions (Imperial) 66.8 x 79.92 x 24.1 feet
Program Version 7.01.29

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
