To control the lateral displacements of a model, you can use the RF-/LIMITS add‑on module. This model was used to demonstrate how the serviceability limit state is analyzed with consideration of horizontal nodal deformations and compared to a limit value.

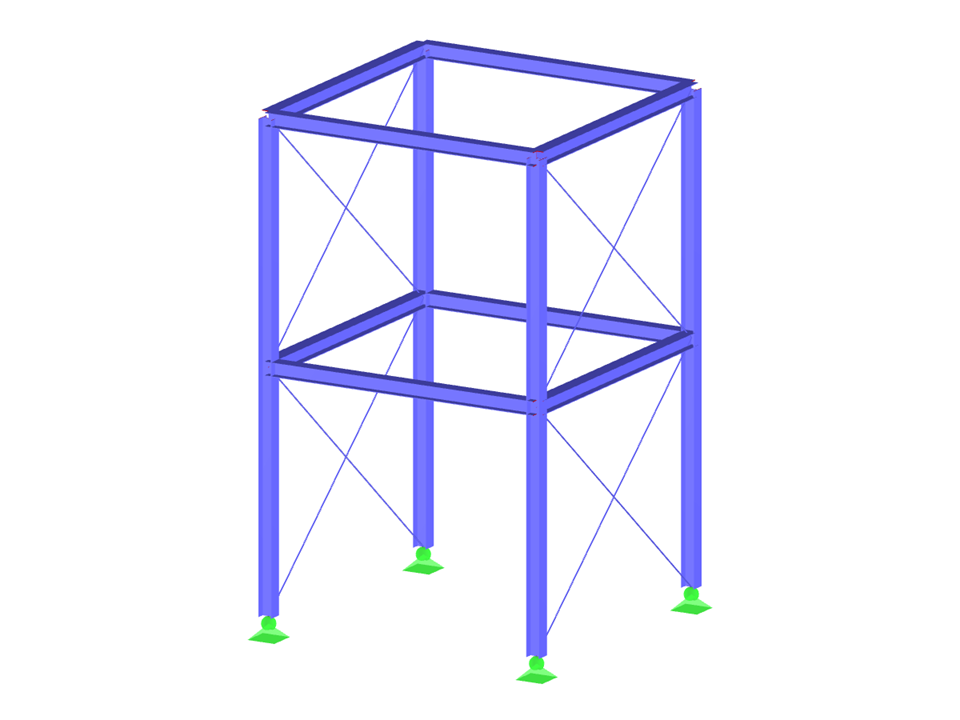

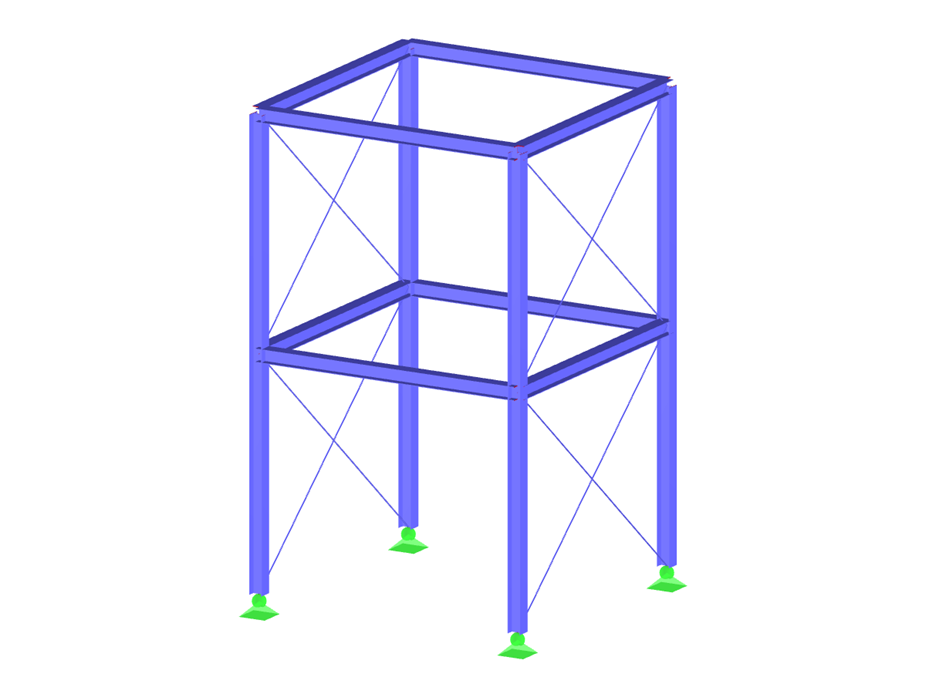

Two-Story Steel Structure
| Number of Nodes | 12 |
| Number of Lines | 24 |
| Number of Members | 24 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 8.118 tons |
| Dimensions (Metric) | 6.000 x 10.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 32.81 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
