2024-05-30
015775

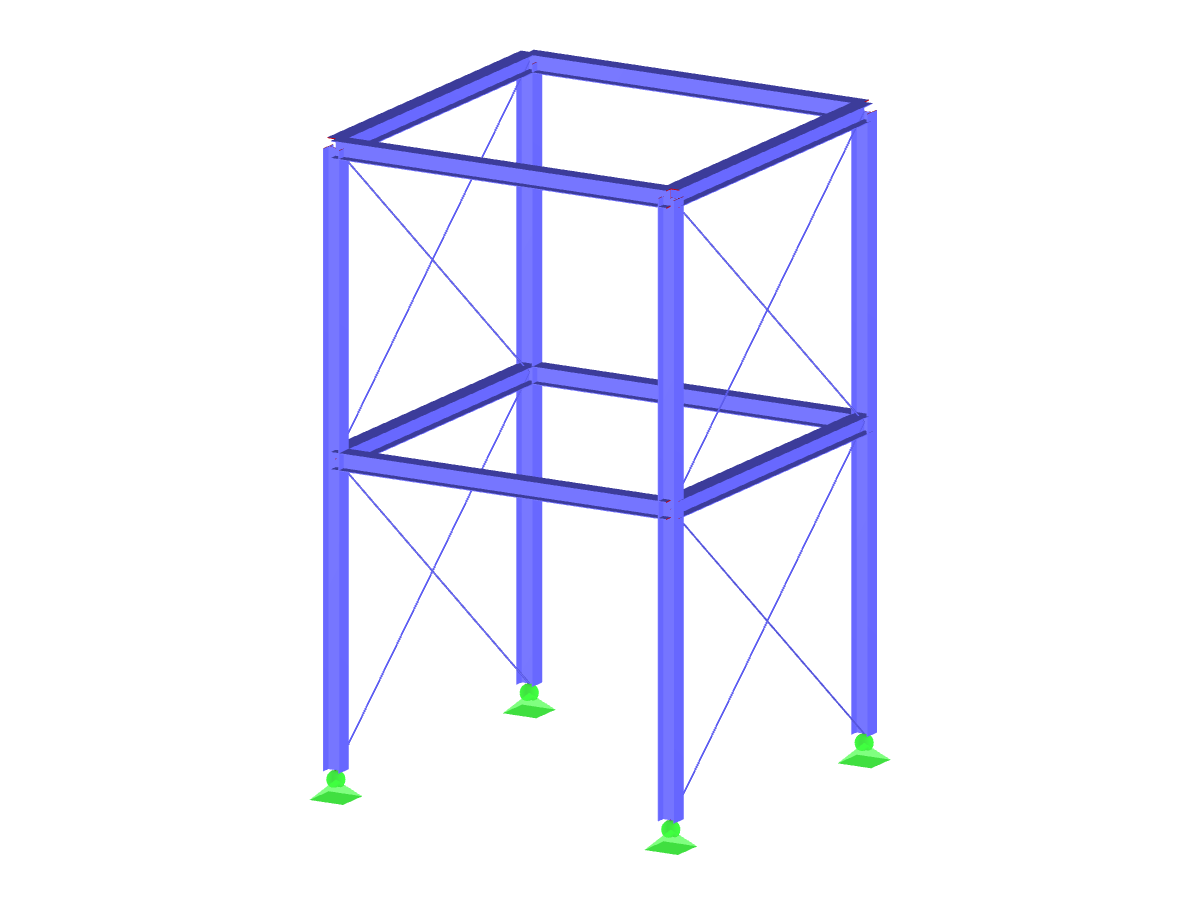

Two-Story Steel Structure
Used in
3D Model
Specifications
| Number of Nodes | 12 |
| Number of Lines | 24 |
| Number of Members | 24 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 8.118 tons |
| Dimensions (Metric) | 6.000 x 10.000 x 6.000 m |
| Dimensions (Imperial) | 19.69 x 32.81 x 19.69 feet |
2024-05-30
010308

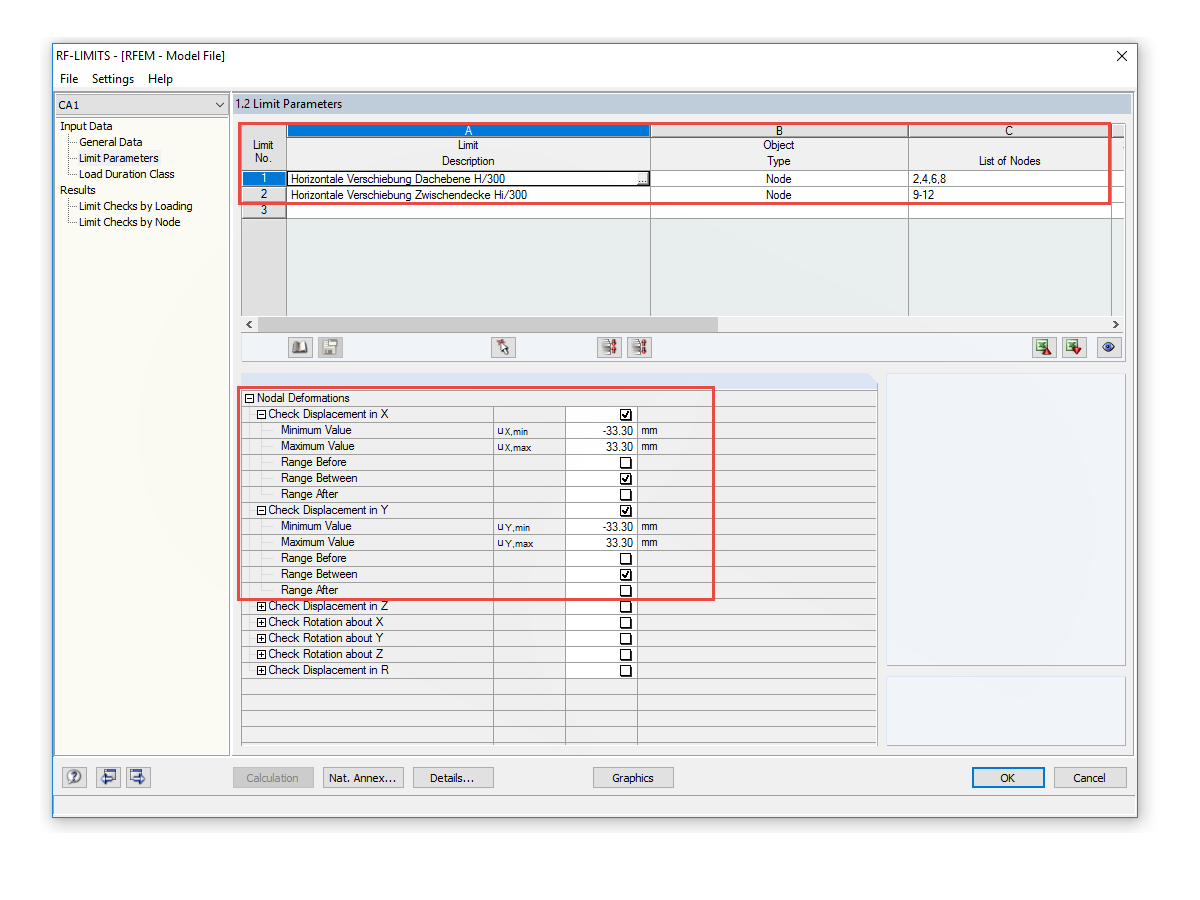

Comparison of Displacements and Defined Limits
Used in
2024-05-30
015774

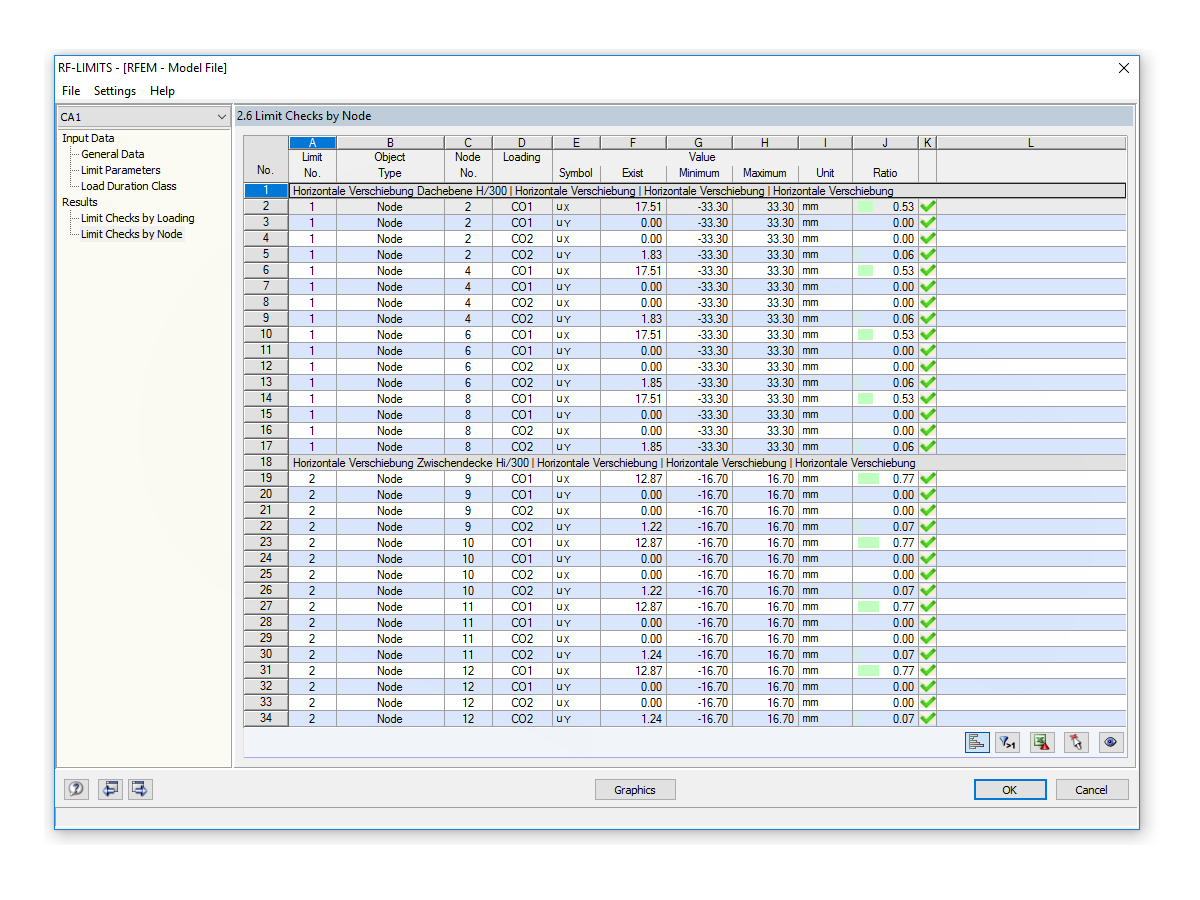

Checking Ratios
Used in
