In RFEM 5 and RSTAB 8, it is possible to consider the roof overhang when generating the loads automatically.
This structural model was used to demonstrate.
Model Used in

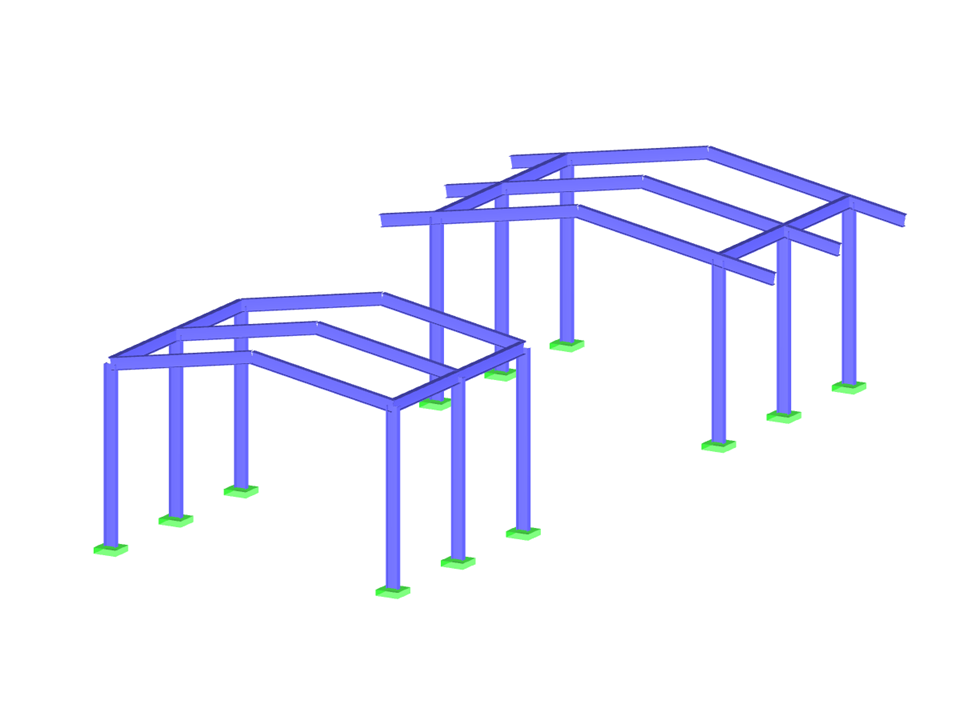

Steel Frame Structures with and Without Roof Overhang
| Number of Nodes | 36 |
| Number of Lines | 38 |
| Number of Members | 38 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 6 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 1.951 tons |
| Dimensions (Metric) | 6.970 x 3.341 x 14.000 m |
| Dimensions (Imperial) | 22.87 x 10.96 x 45.93 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
