The elastic‑plastic material model in RFEM 5 allows you to calculate surfaces and solids with plastic material properties and to carry out a stress evaluation. This material model is based on the classic von Mises plasticity.
Model Used in

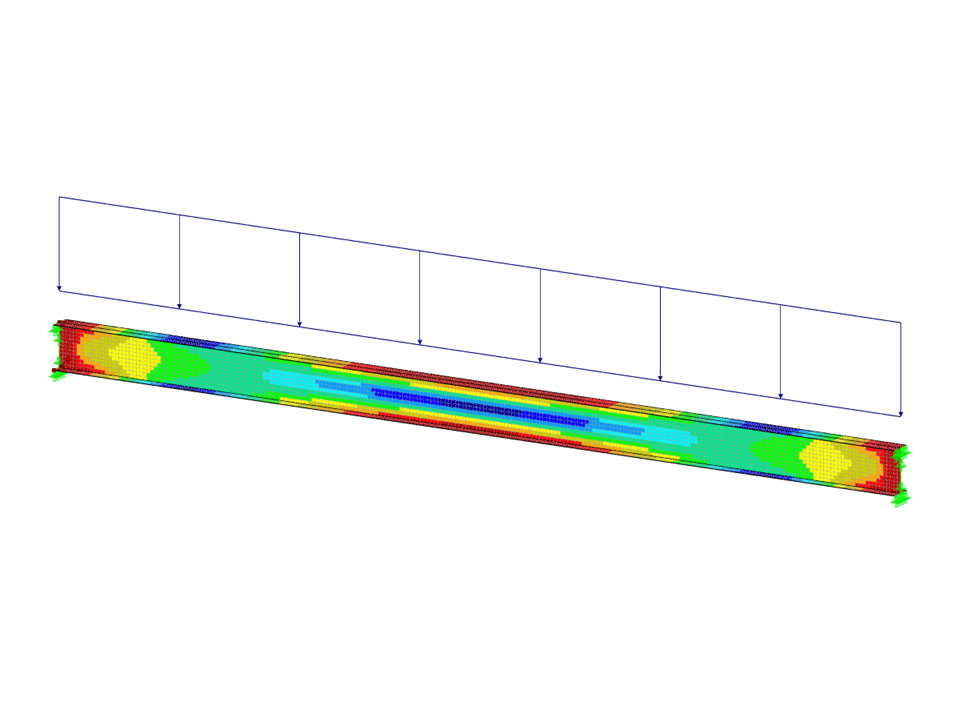

Beam with Elastic-Plastic Material Model
| Number of Nodes | 14 |
| Number of Lines | 17 |
| Number of Members | 1 |
| Number of Surfaces | 5 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.248 tons |
| Dimensions (Metric) | 6.000 x 0.289 x 0.150 m |
| Dimensions (Imperial) | 19.69 x 0.95 x 0.49 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
