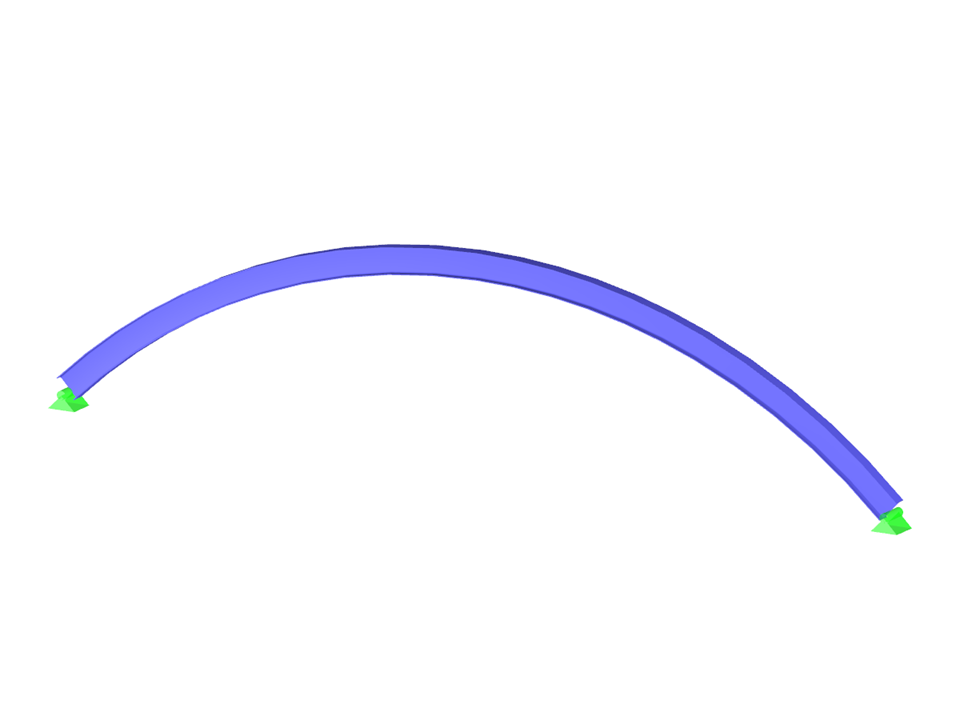

The model shows an innovative structural system based on the combination of steel arches and beams. It presents an accurate arch structure with the characteristic elements of a steel arch integrated into it. The display highlights the effective combination of arch and beam elements that provide high load-bearing capacity and stability. The image visualizes the clear, structured details of the connections and material properties.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Arch Beam Structure

Number of Nodes 5
Number of Lines 2
Number of Members 2
Total Weight 0,466 t
Dimensions (Metric) 10.640 x 0.640 x 2.320 m
Dimensions (Imperial) 34.91 x 2.1 x 7.61 feet
Program Version 5.24.02

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
