The model shows a steel hall constructed according to the guidelines of AISC 360-16. It includes precise parameters based on the AISC specifications from 2016 and provides a reliable basis for demanding steel construction projects. All the essential details of the steel hall are clearly displayed.
Model Used in
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- AISC 360-16 Steel Member Design in RFEM
- Eurocode 3 | Steel structures according to DIN EN 1993-1-1
- Eurocode 3 | Steel structures according to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1
- Eurocode 3 | Steel Structures According to DIN EN 1993-1-1

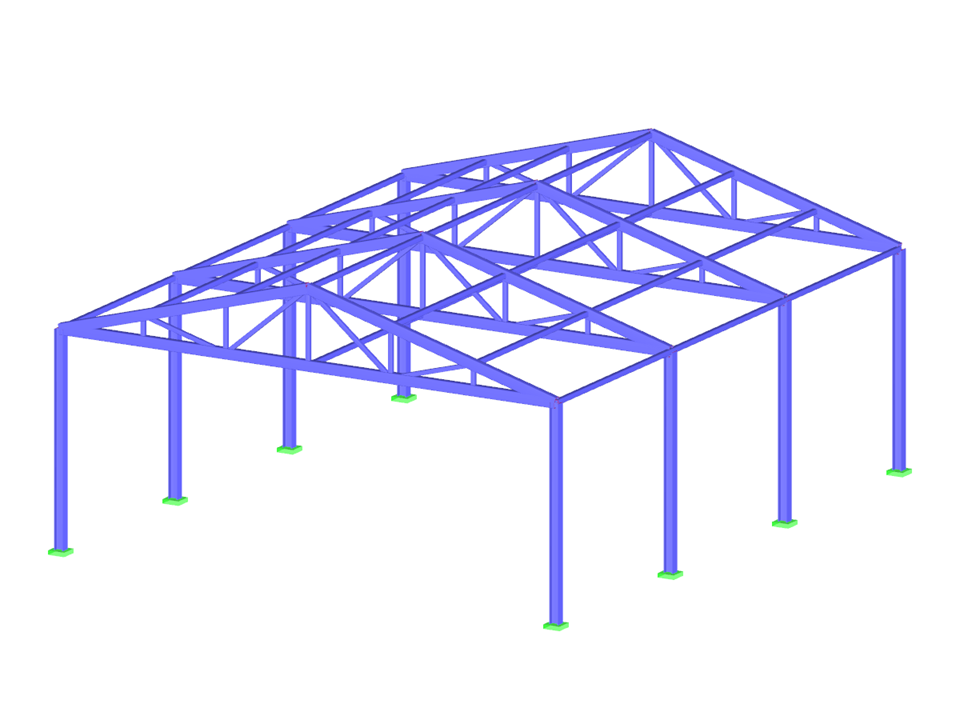

Steel Hall AISC 360-16
| Number of Nodes | 56 |
| Number of Lines | 116 |
| Number of Members | 116 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 2 |
| Total Weight | 27,782 t |
| Dimensions (Metric) | 15.883 x 18.931 x 8.551 m |
| Dimensions (Imperial) | 52.11 x 62.11 x 28.05 feet |
| Program Version | 5.13.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
