Cavezzo is one of the towns in the region of Emilia-Romagna damaged by the 2012 earthquake.
As a result of this event, many public and private structures were heavily damaged and became uninhabitable. The municipal gym is one of these structures; the damage was so serious that it was necessary to completely demolish the existing structure, made of reinforced concrete.
Studio Ergodomus - Ing. Franco Piva and Ing. Cristiano Benacchio
Pergine Valsugana (TN), Italy
www.ergodomus.it

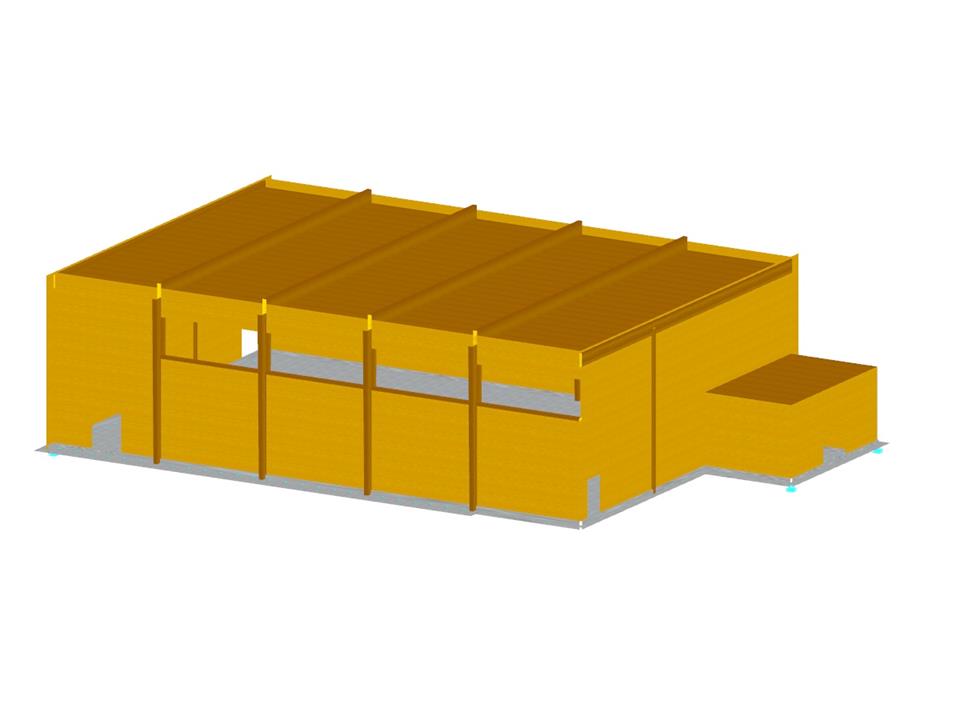

3D model of a sports hall in RFEM (© Studio Ergodomus)
As a result of this event, many public and private structures were heavily damaged and became uninhabitable. The municipal gym is one of these structures; the damage was so serious that it was necessary to completely demolish the existing structure, made of reinforced concrete.
Studio Ergodomus - Ing. Franco Piva and Ing. Cristiano Benacchio
Pergine Valsugana (TN), Italy
www.ergodomus.it
3D model of a sports hall in RFEM (© Studio Ergodomus)
Timber Structure of Sports Hall
No Download Possible
Customer Project / View Only
| Number of Nodes | 125 |
| Number of Lines | 181 |
| Number of Members | 69 |
| Number of Surfaces | 12 |
| Number of Load Cases | 8 |
| Number of Load Combinations | 44 |
| Number of Result Combinations | 6 |
| Total Weight | 822.657 tons |
| Dimensions (Metric) | 39.075 x 25.240 x 9.798 m |
| Dimensions (Imperial) | 128.2 x 82.81 x 32.15 feet |
| Program Version | 5.06.10 |
