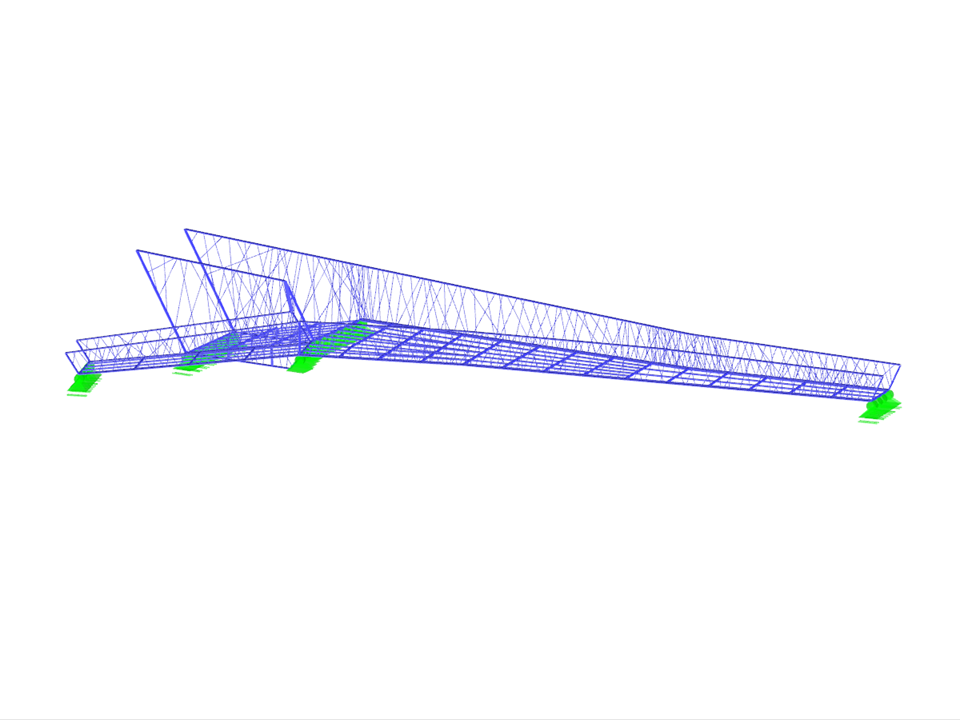

The project of the pedestrian bridge over the Taffa integrated a complex overall concept that includes a garden shed and a seating platform, in addition to the bridge’s function. The delicate, multi-folded truss girders also serve as railings. Structural engineer Konstrukt:ING GmbH and the award-winning architectural firm 4juu architekten were significantly involved in the implementation. The 3D model was created in RSTAB (© Konstrukt:ING GmbH) and represents innovative steel and lightweight structures in an Austrian context. The model impressively illustrates modern construction methods and sophisticated details in bridge construction.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Innovative Steel Footbridge

No Download Possible Customer Project / View Only
Number of Nodes 2106
Number of Members 3148
Number of Load Cases 4
Number of Load Combinations 45
Number of Result Combinations 4
Total Weight 5,133 t
Dimensions (Metric) 23.399 x 7.022 x 2.836 m
Dimensions (Imperial) 76.77 x 23.04 x 9.3 feet
Program Version 8.19.01
