Haus Gables, a new ground-up residential project designed and developed by architectural designer Jennifer Bonner, director of MALL, recently completed construction in the Old Fourth Ward neighborhood of Atlanta, Georgia.
The house, with 2,200 ft2 of living space, was built using cross-laminated timber, making it the second of its kind in the USA. This material is very durable and consists of glued layers of timber that are crossed.
Bensonwood
bensonwood.com

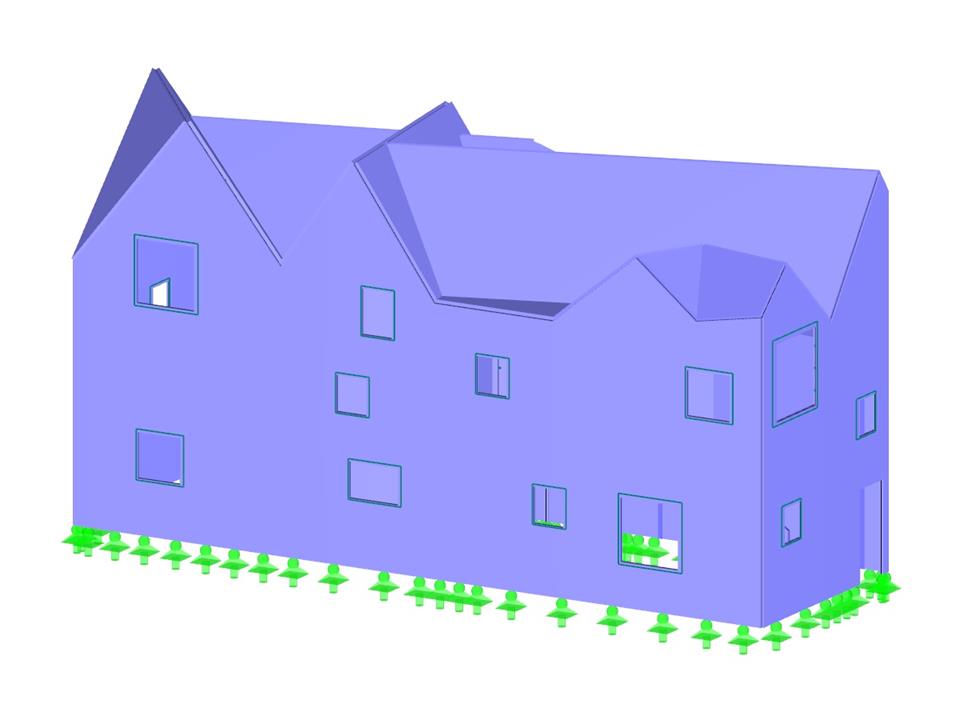

3D model of House Gables in RFEM (© Bensonwood)
The house, with 2,200 ft2 of living space, was built using cross-laminated timber, making it the second of its kind in the USA. This material is very durable and consists of glued layers of timber that are crossed.
Bensonwood
bensonwood.com
3D model of House Gables in RFEM (© Bensonwood)
Cross-Laminated Timber Building
No Download Possible
Customer Project / View Only
Number of Nodes | 338 |
Number of Lines | 497 |
Number of Members | 8 |
Number of Surfaces | 105 |
Number of Load Cases | 7 |
Number of Load Combinations | 24 |
Number of Result Combinations | 2 |
Total Weight | 41.176 tons |
Dimensions (Metric) | 16.580 x 5.229 x 9.071 m |
Dimensions (Imperial) | 54.4 x 17.16 x 29.76 feet |
Program Version | 5.20.00 |
