Model for customer project 921 "Newly Constructed Multi-Purpose Stadium in Uyo, Nigeria"
After three years of construction, a stadium with 30,000 seats was completed in Uyo, Nigeria in 2014. Major national and international events will take place in this multifunctional two-tier stadium.
Uyo is the capital of Akwa Ibom State in southern Nigeria. About 400,000 inhabitants live here.
The steel structure of the stadium was calculated by formTL using RSTAB.
formTL Ingenieure für Tragwerk und Leichtbau GmbH, Radolfzell, Germany
www.form-TL.de

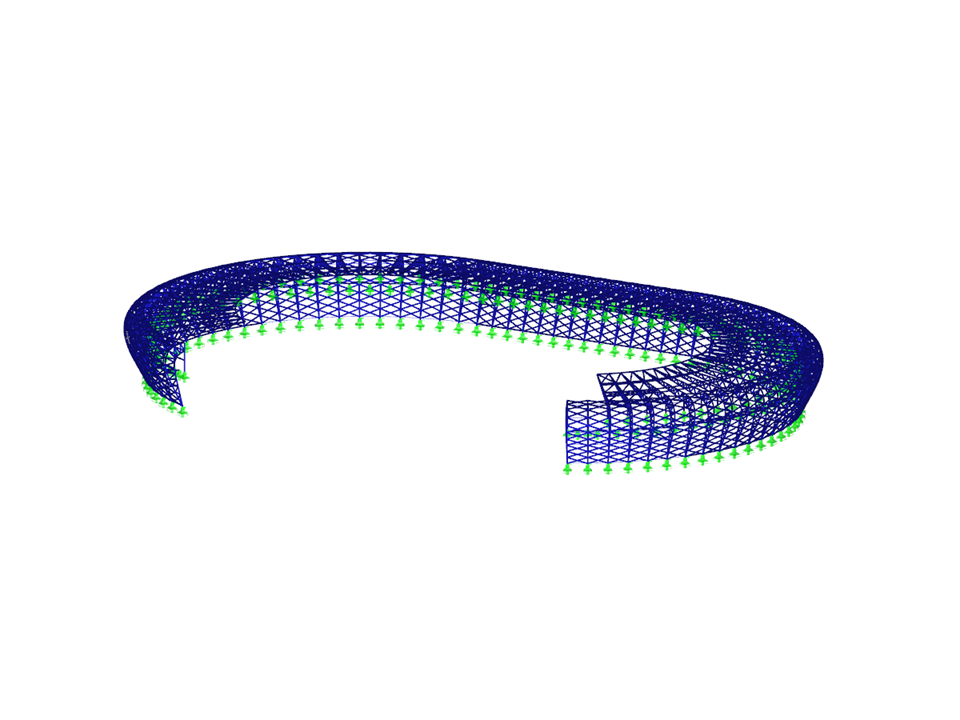

Stadium model (© formTL)
After three years of construction, a stadium with 30,000 seats was completed in Uyo, Nigeria in 2014. Major national and international events will take place in this multifunctional two-tier stadium.
Uyo is the capital of Akwa Ibom State in southern Nigeria. About 400,000 inhabitants live here.
The steel structure of the stadium was calculated by formTL using RSTAB.
formTL Ingenieure für Tragwerk und Leichtbau GmbH, Radolfzell, Germany
www.form-TL.de
Stadium model (© formTL)
Newly Constructed Multi-Purpose Stadium in Uyo, Nigeria
No Download Possible
Customer Project / View Only
Number of Nodes | 6024 |
Number of Members | 12049 |
Total Weight | 1196.835 tons |
Dimensions (Metric) | 248.254 x 155.661 x 23.733 m |
Dimensions (Imperial) | 814.48 x 510.7 x 77.86 feet |
Program Version | 8.02.00 |
