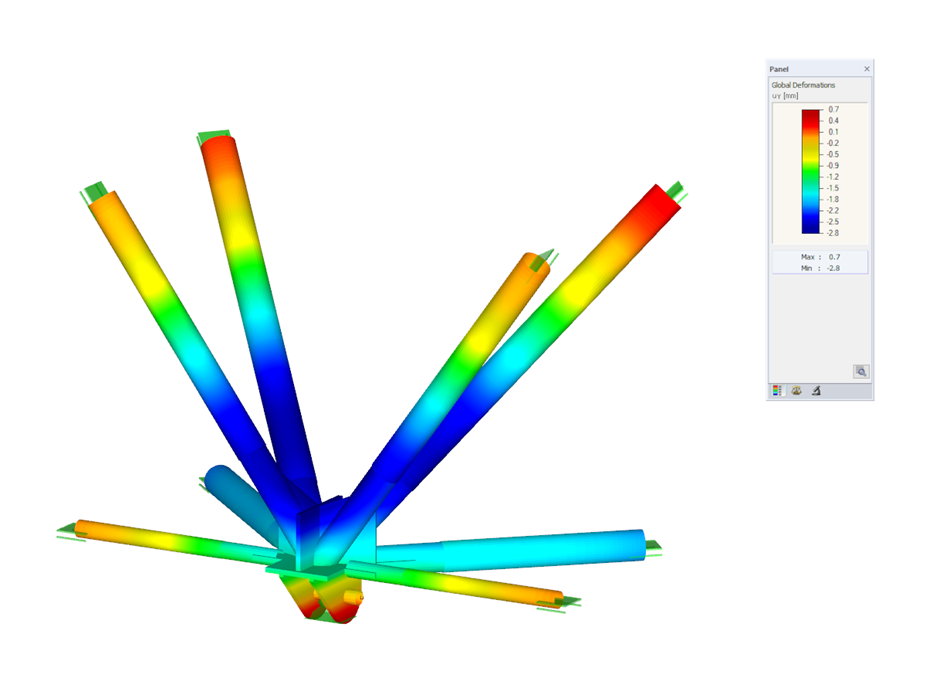

3D model of a steel structure connection of tube section members on a support.
Model Used in
Steel Structure Connection of Support Node
No Download Possible
Customer Project / View Only
| Number of Nodes | 574 |
| Number of Lines | 448 |
| Number of Members | 18 |
| Number of Surfaces | 76 |
| Number of Solids | 6 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 1 |
| Total Weight | 1.558 tons |
| Dimensions (Metric) | 4.728 x 2.381 x 3.480 m |
| Dimensions (Imperial) | 15.51 x 7.81 x 11.42 feet |
| Program Version | 5.12.01 |
