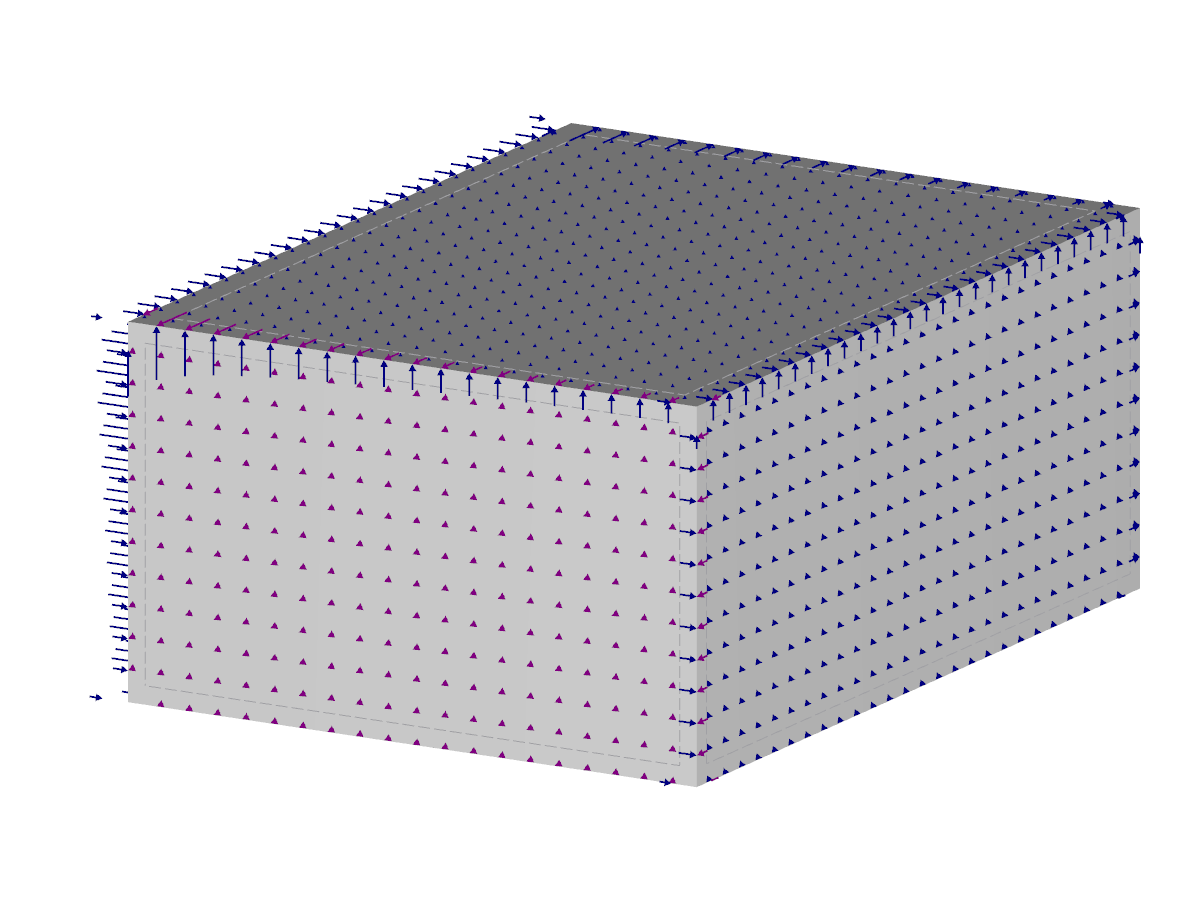

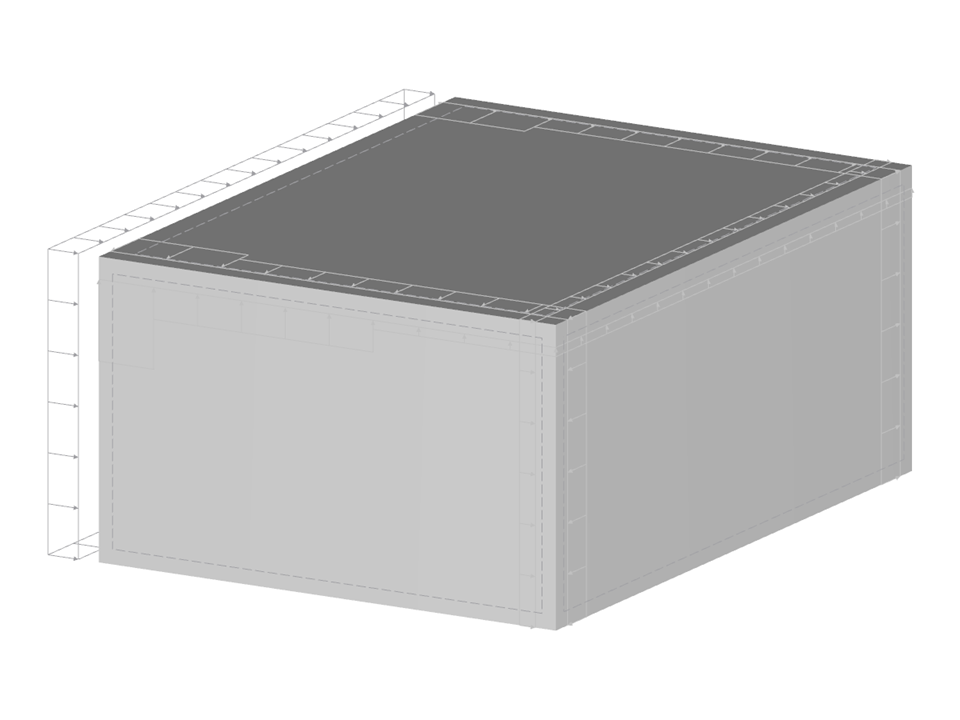

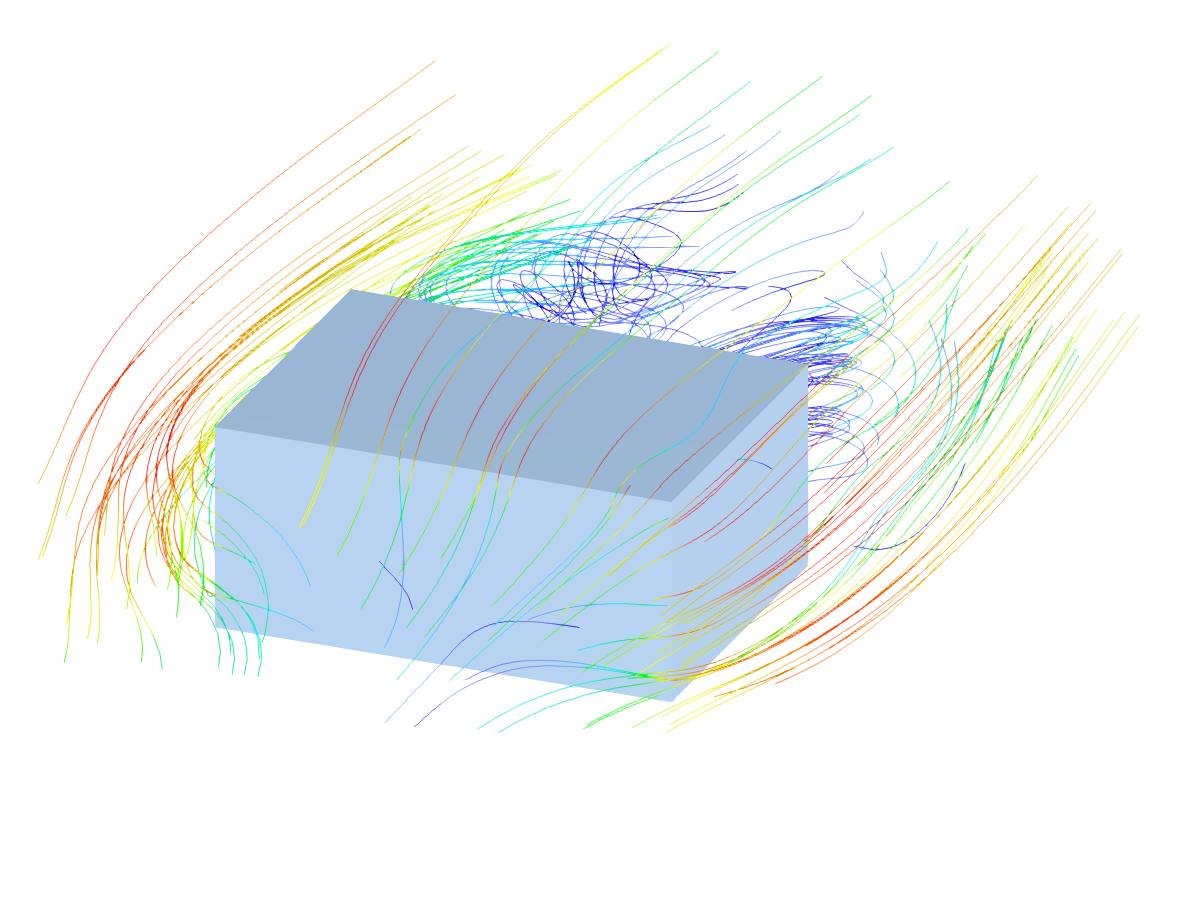

The verification example compares wind load calculation of a flat-roof building using the standard EN 1991-1-4 and the CFD simulation in RWIND Simulation. The building is defined according to the sketch and the inflow velocity profile is taken according to the standard EN 1991-1-4.
Verification Example 000303 | 1
Number of Nodes | 8 |
Number of Lines | 12 |
Number of Surfaces | 6 |
Number of Solids | 1 |
Number of Load Cases | 2 |
Total Weight | 2025.000 tons |
Dimensions (Metric) | 10.000 x 13.500 x 6.000 m |
Dimensions (Imperial) | 32.81 x 44.29 x 19.69 feet |
Program Version | 5.22.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
