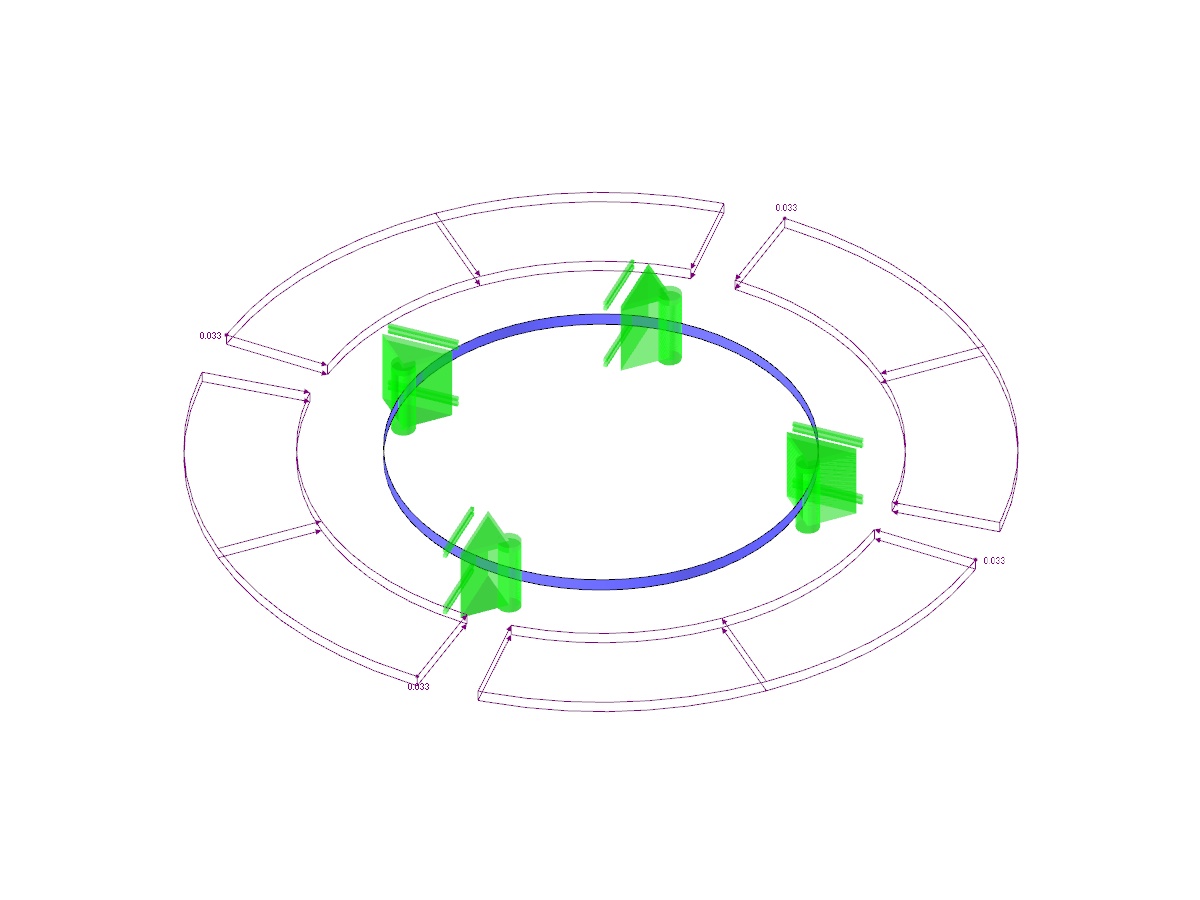

A thin circular ring of rectangular cross-section is exposed to an external pressure. Determine the critical load and corresponding load factor for in-plane buckling.
Verification Example 000094 | 1
| Number of Nodes | 12 |
| Number of Lines | 4 |
| Number of Members | 4 |
| Number of Load Cases | 1 |
| Total Weight | 0.002 tons |
| Dimensions (Metric) | 1.076 x 1.076 x 0.076 m |
| Dimensions (Imperial) | 3.53 x 3.53 x 0.25 feet |
| Program Version | 5.14.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
