A very stiff cable is suspended between two supports. Determine the equilibrium shape of the cable, the so-called catenary, consider the gravitational acceleration and neglect the stiffness of the cable. Verify the position of the cable at given test points.

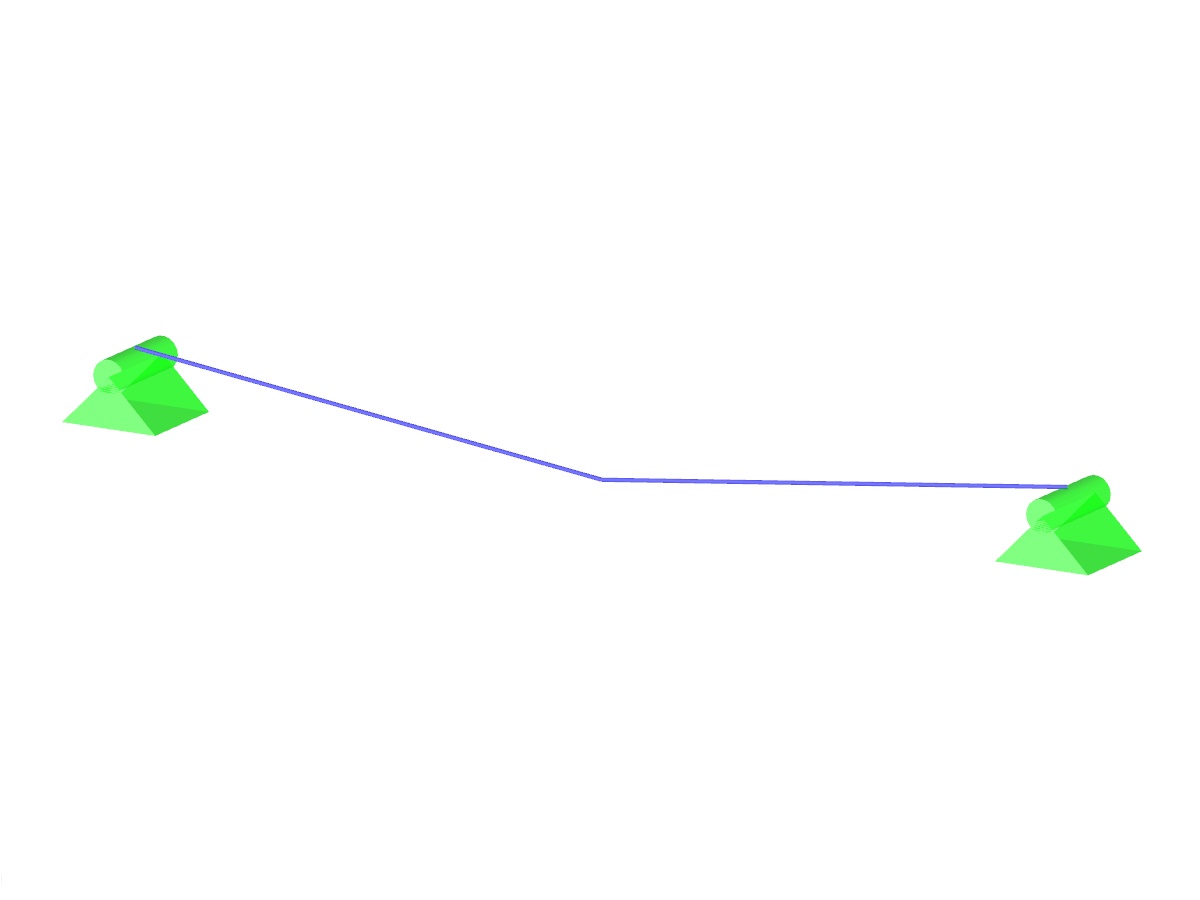

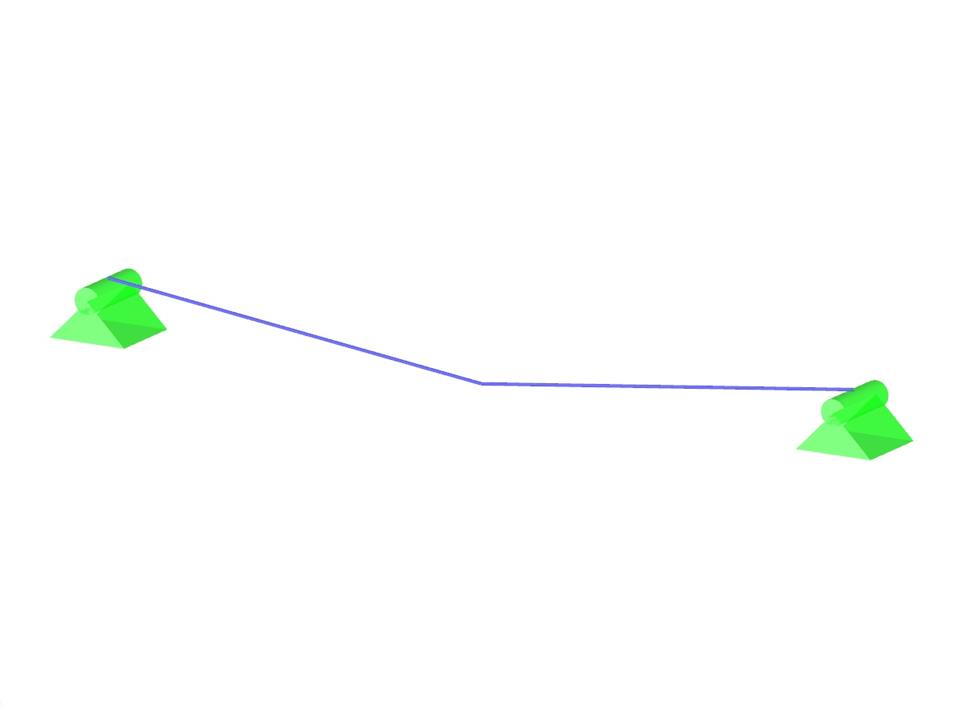

Verification Example 000079 | 1
| Number of Nodes | 101 |
| Number of Lines | 100 |
| Number of Members | 100 |
| Number of Load Cases | 1 |
| Total Weight | 0.012 tons |
| Dimensions (Metric) | 5.070 x 0.070 x 0.335 m |
| Dimensions (Imperial) | 16.63 x 0.23 x 1.1 feet |
| Program Version | 5.11.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
