Download the model of a cantilever here, and open it with the finite element analysis software RFEM 5.
This model was shown in the video "Modeling with RFEM 5 | 002 Cantilever "created.
Model Used in

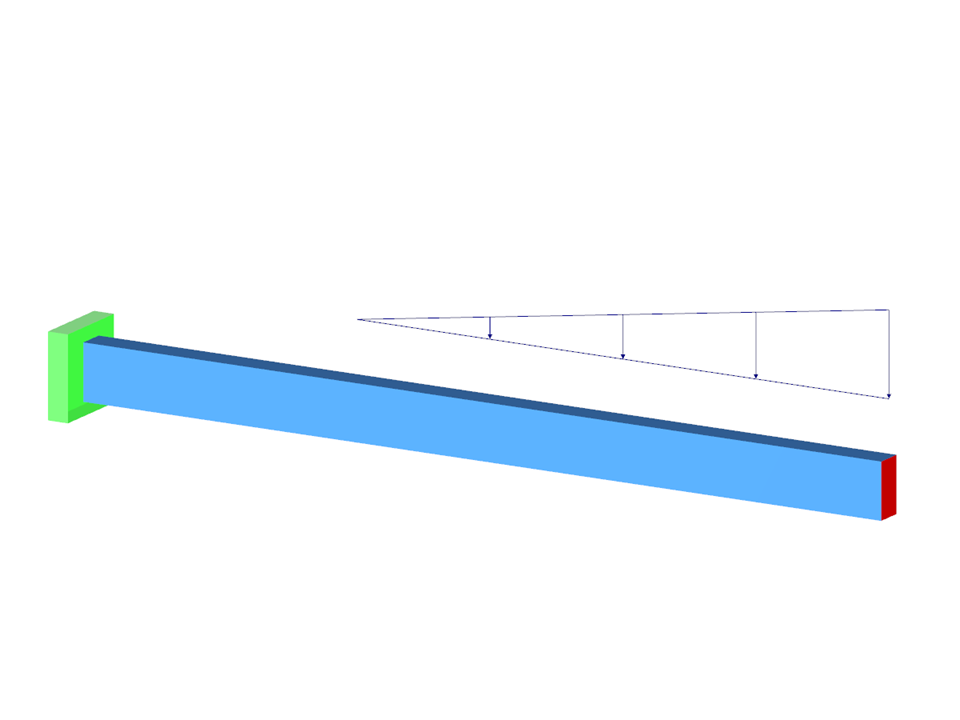

Modeling with RFEM 5 | 002 Cantilever Beam
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Dimensions (Metric) | 3.144 x 0.288 x 0.288 m |
| Dimensions (Imperial) | 10.31 x 0.94 x 0.94 feet |
| Program Version | 5.21.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
