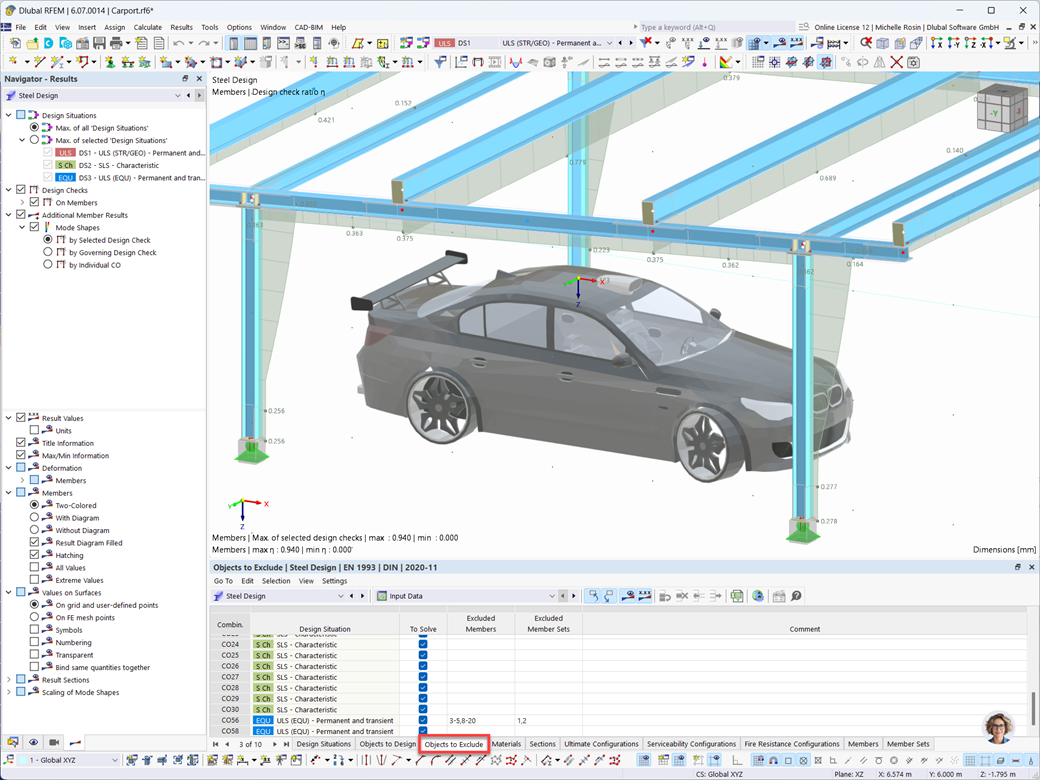

You have the option to exclude objects such as members, surfaces, and so on, from the design by load combination (CO)/result combination (RC). You can enter the data in the 'Objects to Exclude' tab of the table. Thus, you can design certain objects only with certain load combinations. This option is available in all design add-ons with the exception of the 'Steel Joints' add-on.
