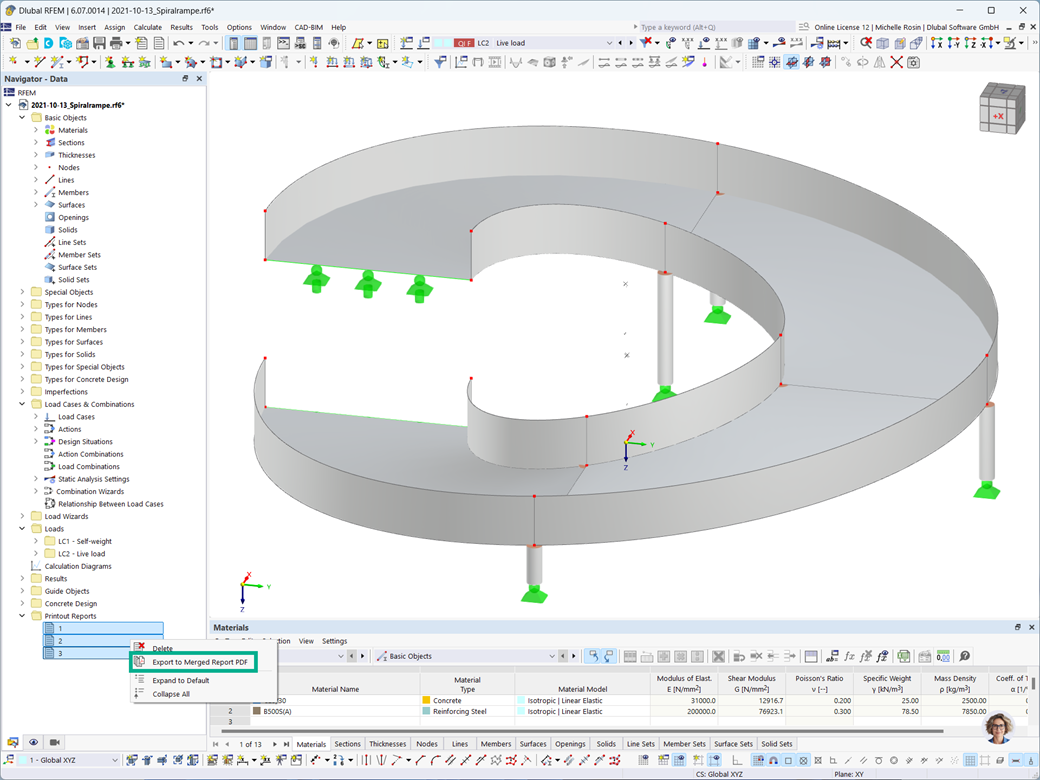

In RFEM and RSTAB, you have the option to export several printout reports into a PDF file.
You can find this function in the Navigator – Data.
