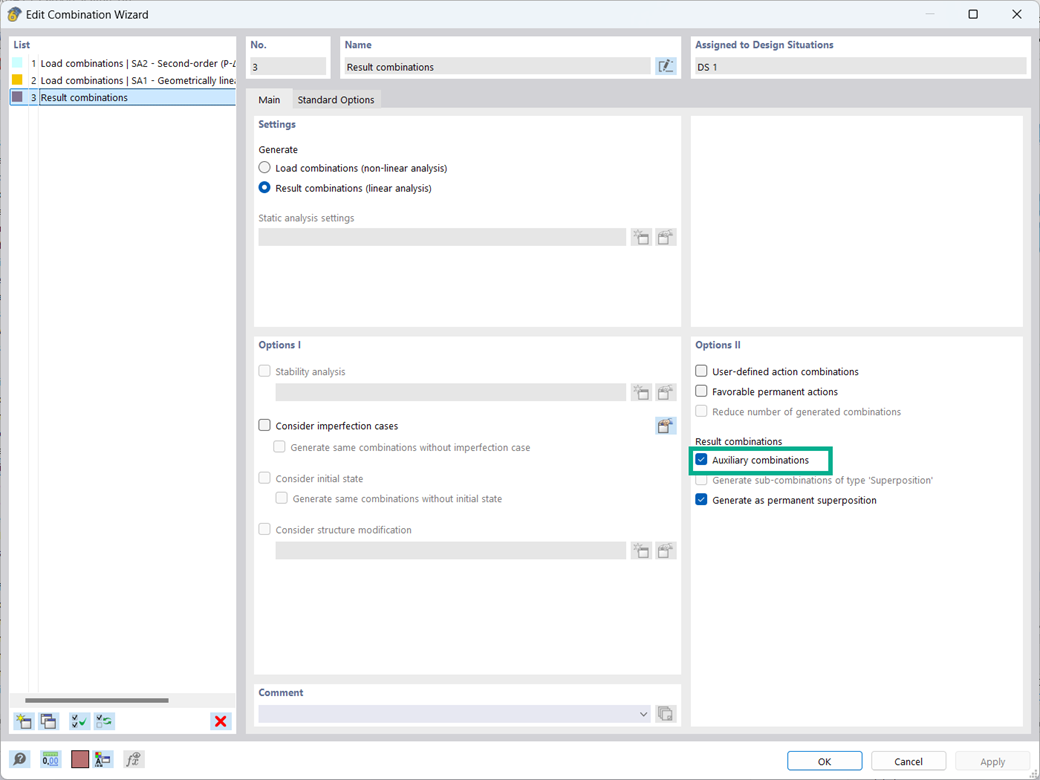

In the combination wizard, you can create final result combinations using auxiliary combinations. In the case of models with many load cases (for example, moving loads for bridges), you can use this option to generate result combinations that are more transparent and thus easier to check.
