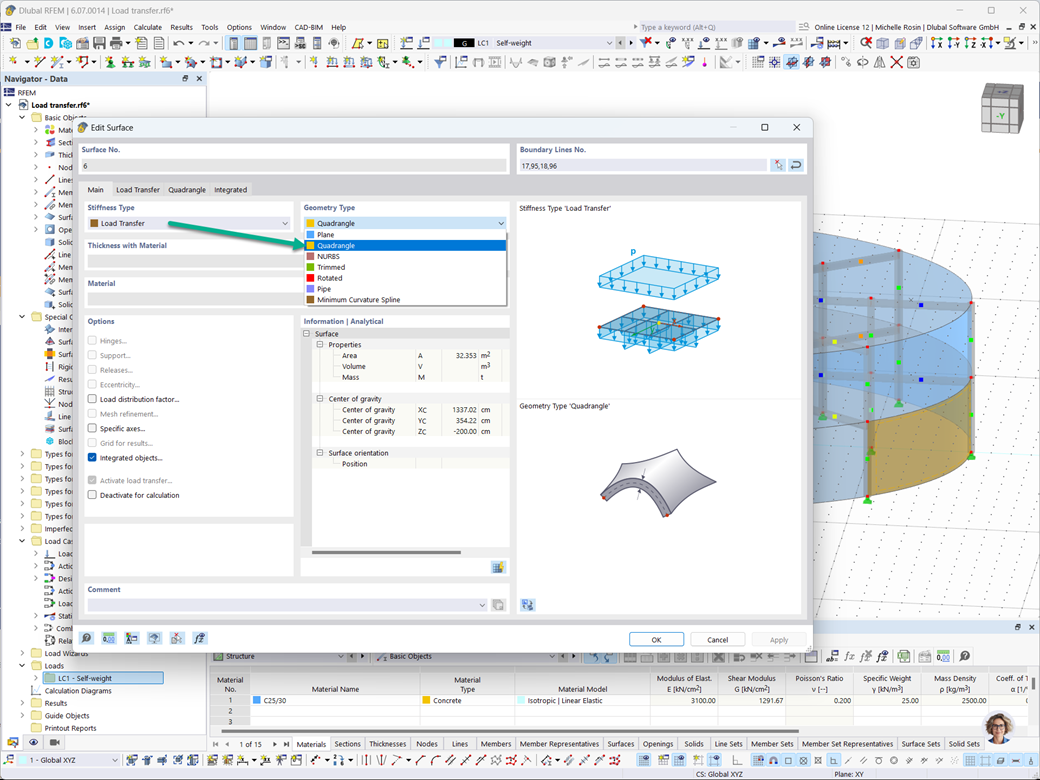

For the "Load Transfer" surface stiffness type, there are curved geometries available, such as "Quadrangle", "NURBS", and "Rotation", in addition to the "Plane" and "Pipe" geometry types.
