In the Timber Design add-on for RFEM, you can design members as well as surfaces according to Eurocode 5, SIA 265 (Swiss standard), CSA O86 (Canadian standard), or ANSI/AWC NDS (American standard); for example, cross-laminated timber, glued-laminated timber, softwood, mass timber, and so on.
Go to Explanatory VideoDesign of Orthotropic Timber Surfaces and Cross-Laminated Timber (CLT)
![Model of Timber Platform](/en/webimage/039775/3498806/001819-01.png?mw=512&hash=e7f172e7dfaca53a2d2d7f5bdda41008f4f1c03d)
![Tapered Timber Girder](/en/webimage/026239/3296160/1._The_Model.png?mw=512&hash=c10083e9da24ade1636f3a73bae2c6b1bef125b0)
![Timber Panel Wall Stiffnesses](/en/webimage/049956/3893282/49956.png?mw=512&hash=8dfc2b6d0af6ade74073e21655c6a73a34a77751)
![KB 001848 | Timber Column Design as per the 2018 NDS Standard in RFEM 6](/en/webimage/040983/3525158/Timber_Column_for_KB_1848.png?mw=512&hash=8767c3300658d77c253bb7ff632327937a04dd95)
![Feature 002585 | Fire Resistance Design of Surfaces for EN 1995 and SIA 265](/en/webimage/047506/3771829/2024-03-15_11-08-39.png?mw=512&hash=9825c52bdc32fc7283ab1907a9b8435abfd7054b)
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
![Feature 002633 | Transversal Compression Stiffening Elements for Design Supports](/en/webimage/041369/3589958/en_us_img.png?mw=512&hash=9fcc50f3b64f46da748c76cc28b27d160e88921d)
Did you know? In the Design Supports, you can now define fully threaded screws as transversal compression stiffening elements for the "Compression Perpendicular to Grain" design. In this case, the pressing-in and buckling of the bolts is analyzed.
Moreover, the design shear resistance is checked in the plane of the screw tip. The angle of dispersal can be considered as linear under 45° or nonlinear (according to Bejtka, I. (2005). Verstärkung von Bauteilen aus holz mit vollgewindeschrauben. KIT Scientific Publishing.).
![Feature 002606 | Design of Laminated Veneer Lumber (LVL) Members According to EN 1995-1-1](/en/webimage/040953/3523780/FSH.png?mw=512&hash=4b93111c74d74c6486e65b6aced8d59542e75cf0)
In RFEM and RSTAB, you can design members with the "Laminated Veneer Lumber" material type. The following manufacturers are available:
- Pollmeier (Baubuche)
- Metsä (Kerto LVL)
- STEICO
- Stora Enso
In the ultimate configuration, you can consider strength coefficients for increasing the strengths. The coefficients reducing the strengths are automatically taken into account regardless of this. Try it now!

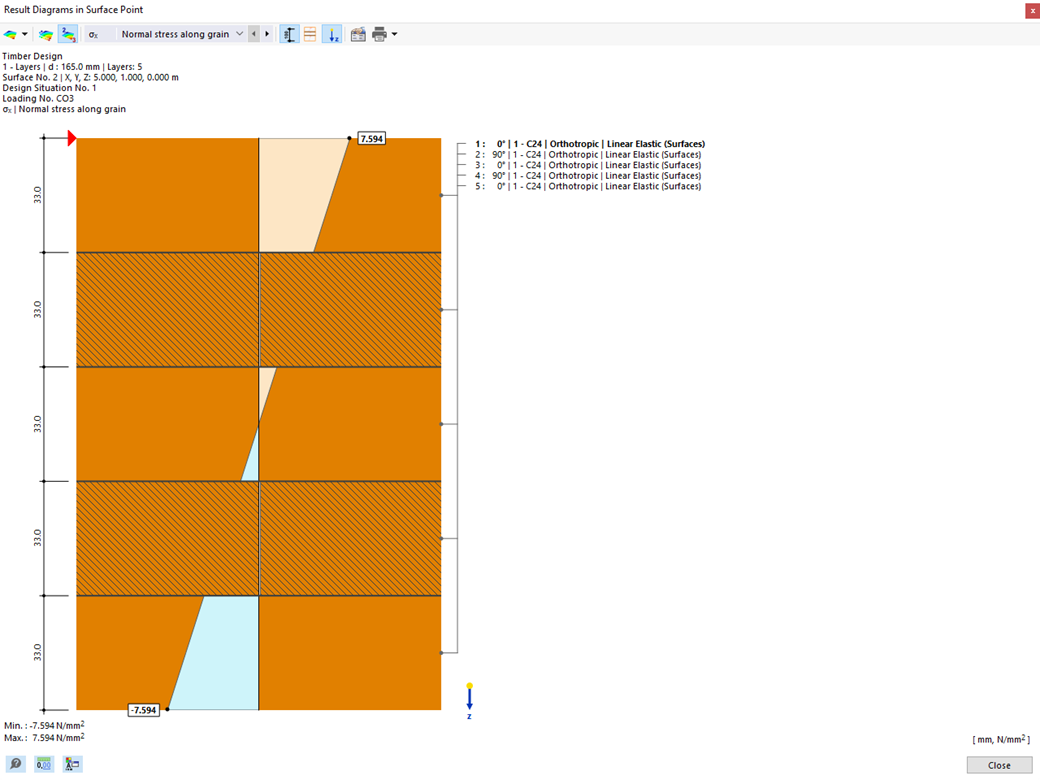

Go to Explanatory Video![Feature 002556 | Design of Orthotropic Timber Surfaces and Cross-Laminated Timber (CLT)](/en/webimage/036658/3452017/36658_EN.png?mw=512&hash=f04d94325bc6275728b77f8610a93429bf528609)
In the Timber Design add-on for RFEM, you can design members as well as surfaces according to Eurocode 5, SIA 265 (Swiss standard), CSA O86 (Canadian standard), or ANSI/AWC NDS (American standard); for example, cross-laminated timber, glued-laminated timber, softwood, mass timber, and so on.
