STEP (.stp) File Import in RFEM 6

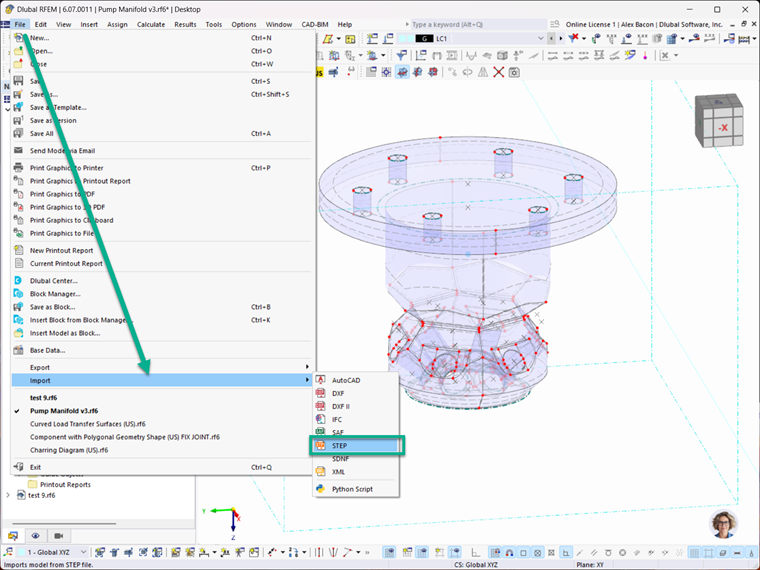

How can I import the file type "STEP" into RFEM 6?


Answer:

Yes, importing STEP files into RFEM 6 is possible. The data is directly converted into the native RFEM model data.
STEP is an interface standard initiated by ISO (ISO 10303). In the geometry description, all shapes relevant for RFEM (line, surface, and solid models) can be integrated by the CAD data models.


Note: This format is not to be confused with DSTV interfaces, which also use the file extension *.stp.
