Answer:

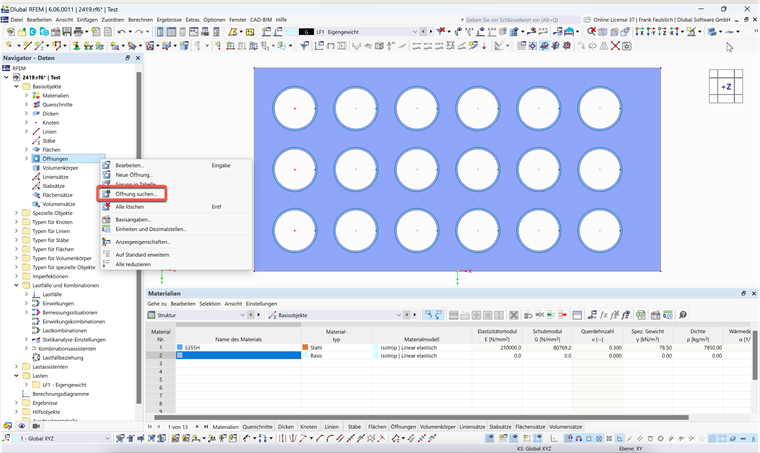

Right-click the "Openings" entry in the Data navigator and select "Find Opening" from the menu.

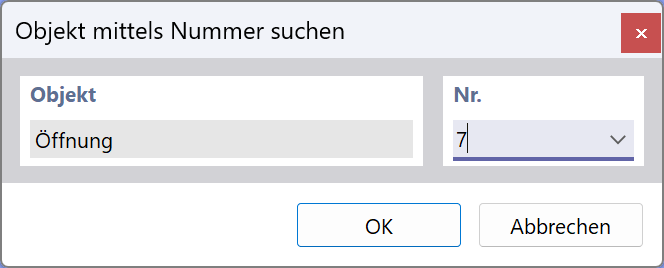

Enter the opening number and click OK.
The opening is indicated by a red arrow in the graphic.
