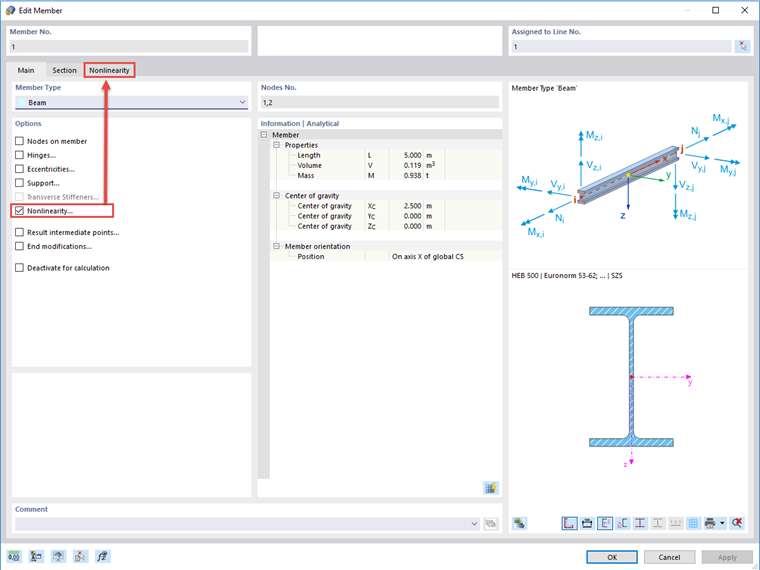

Yes, you have to activate the "Nonlinearity" tab in the "New Member/Edit Member" dialog box; see Image 01.

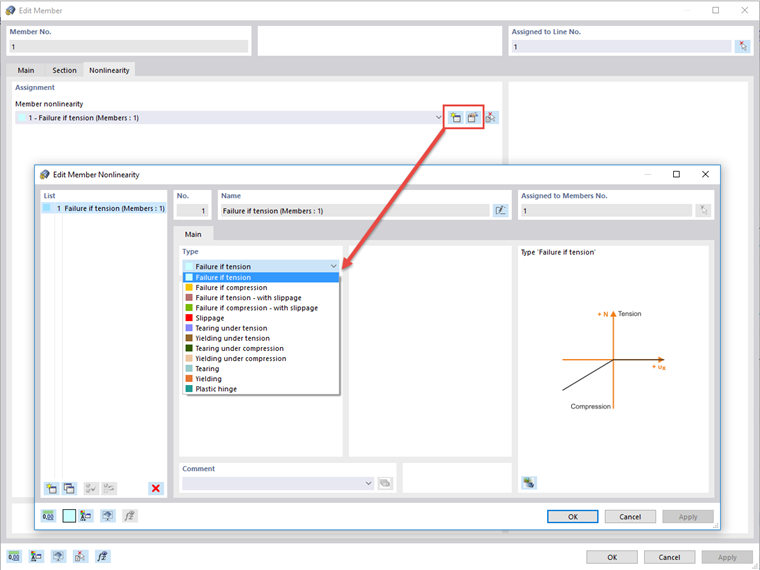

In the "Nonlinearity" tab, you can then define a new member nonlinearity; see Image 02.
Yes, you have to activate the "Nonlinearity" tab in the "New Member/Edit Member" dialog box; see Image 01.
In the "Nonlinearity" tab, you can then define a new member nonlinearity; see Image 02.
