Adjustment of Lighting Settings for Uniform Surface Display

In my model, some surfaces are displayed in gray, while others are displayed in white without a gray filling. The "solid transparent" display type is selected for the graphics. How do I display all surfaces in gray?


Answer:

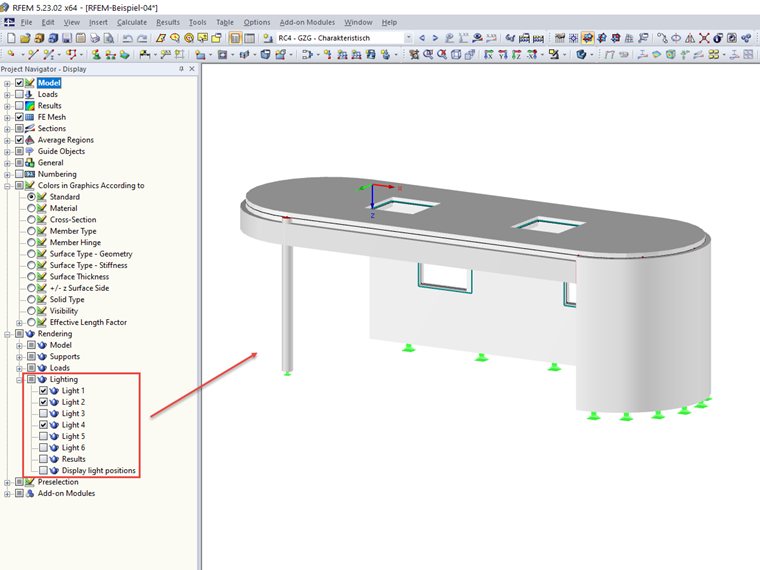

The cause is very likely to be found in the lighting settings. In Project Navigator – Display, you can adjust the lighting for the model (see image). Depending on the orientation of the model, it may happen that some surfaces appear white due to the direct lighting.

You can adjust the individual lights quickly at any time. Thus, optimum lighting of the model is ensured at every viewing angle.
